Brand Name: | NO |
Model Number: | T88-34D |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:T88 34D forward

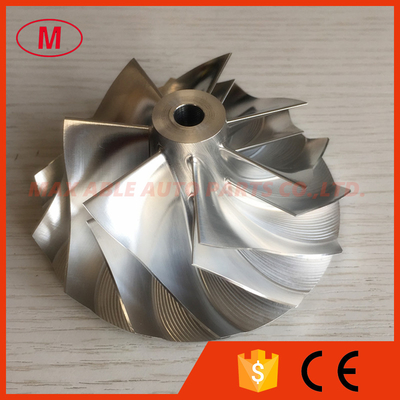

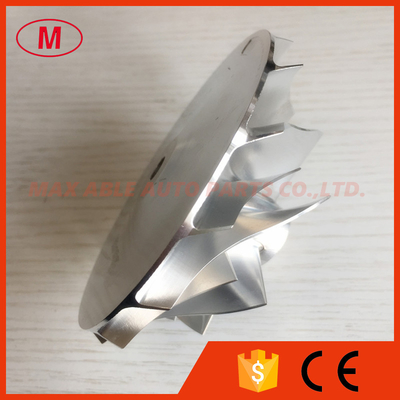

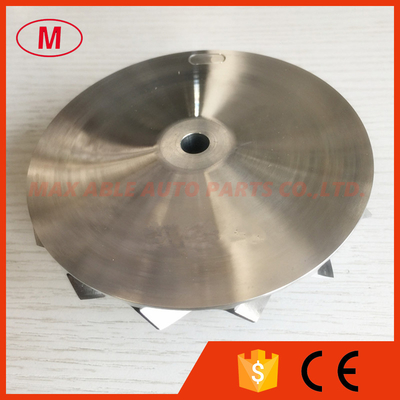

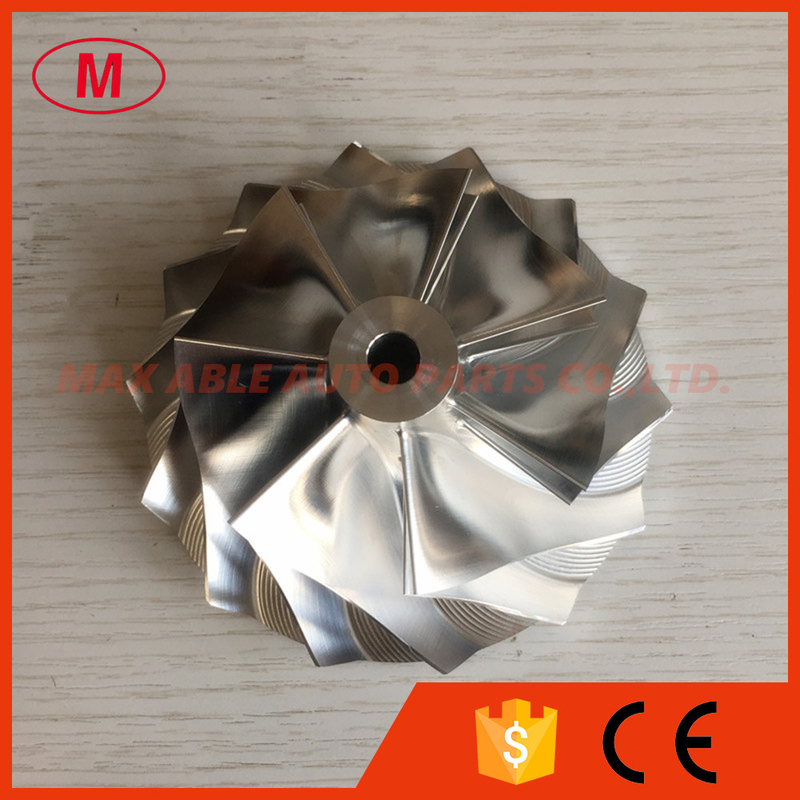

2. T88 34D 7+7 blade 69.67/95.00mm turbo Billet/milling/aluminum 2618 compressor wheel for Greddy 49188-02700
3.Size:
Nose diameter:19.47mm
inducer:69.67mm
exducer:95.00mm
Tapered tip exducer:98.78mm
tip height:8.31mm
Overall height:40.99mm
super back:2.95mm
bore size :7.95mm
bore type:through
Trailing angle:45
SP height angle:-9.80
Splitter height:22.00mm
blades height:32.38mm
Cutback:0.0
7+7 blades
Forward rotation
Tapered tip angle:18 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
