| Brand Name: | NO |
| Model Number: | TD05H 16G small |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 16G small forward

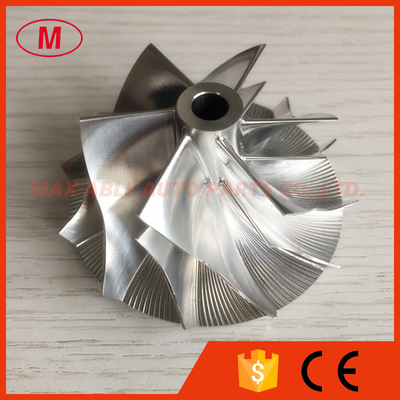

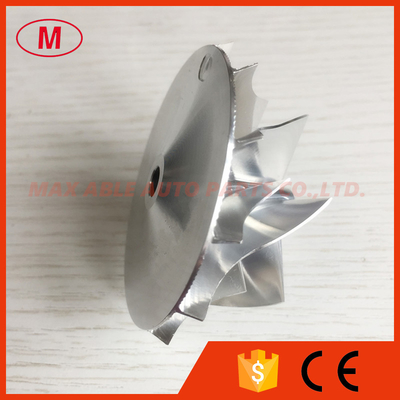

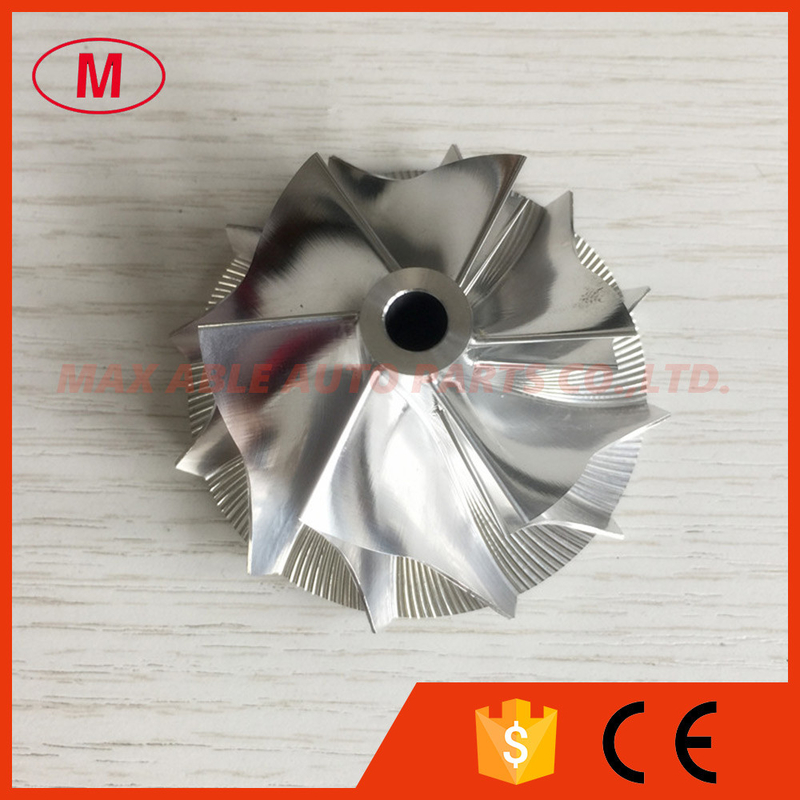

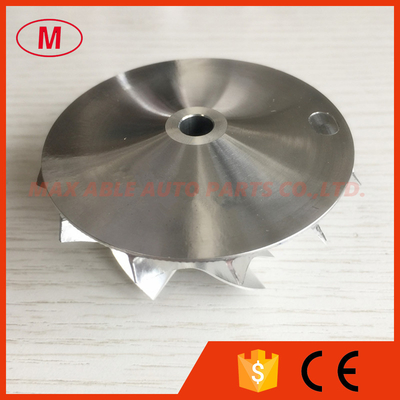

2.TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-02001, 49178-01460, 49178-04340, 49178-04400, 49178-04500, 49178-04510, 49178-05200,49178-06200, 49178-06290, 49178-06300, 49178-06310, 49178-06380, 49178-06390
3.Size:
Nose diameter:11.79mm
Inducer:46.48mm
Exducer:60.00mm
Tapered tip exducer:64.60mm
Tip height:4.99mm
Superback:2.80mm
Overall height:31.40mm
bore size :6.50mm
bore type:through
Trailing angle:60
Cutback:3.0
Blades height:26.80mm
Splitter height:15.80mm
Sp height angle:-3.10
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the billet wheels have been balanced.
