| Brand Name: | NO |
| Model Number: | TD04HL 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

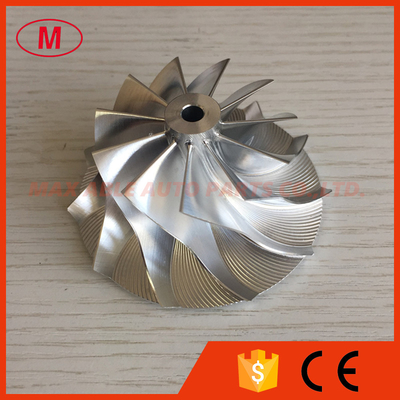

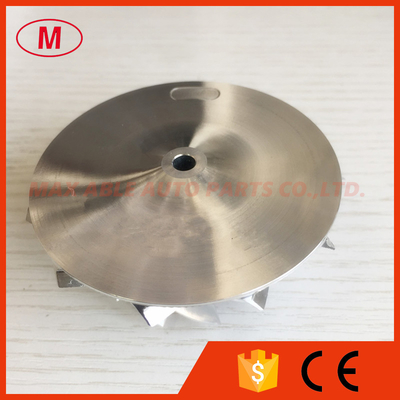

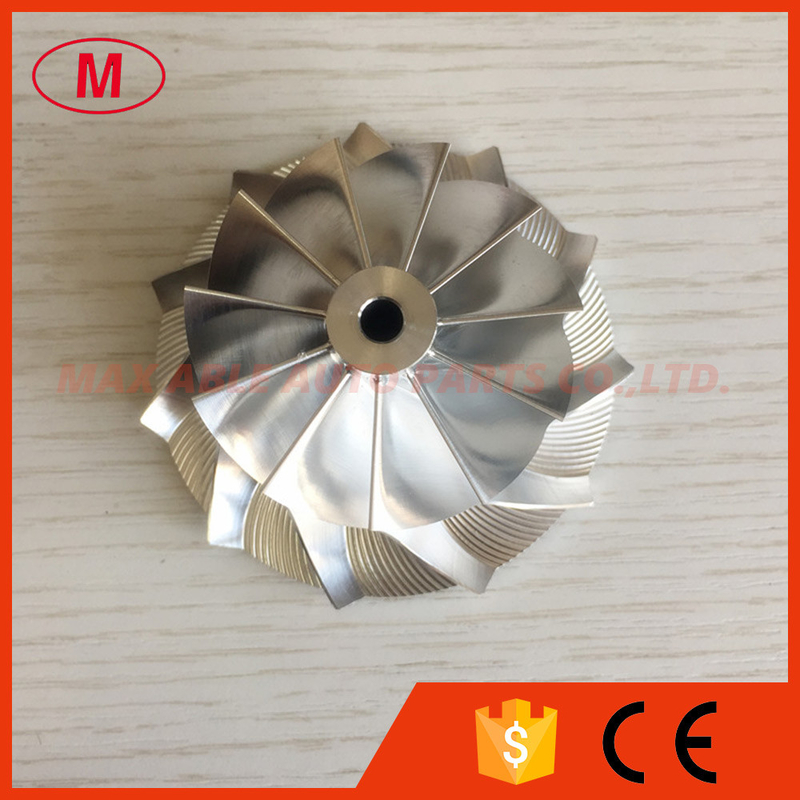

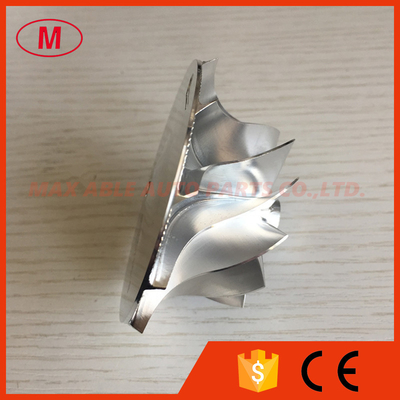

1.Model:TD04HL 16G FOWARD
3.Size:
Nose diamter:12.80mm
inducer:48.30mm
Exduder:68.00mm
Tapered tip exducer:72.17m
Tip height:4.61mm
Superback:1.90mm
Overall height:34.20mm
Bore size:5.00mm
bore type:through
Trailing Angle:55 degree
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:28.90mm
Tapered tip angle:30 degree
It is custom size,please check carefully before buying.
11+0 blades
Forward rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
