| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 20G upgrade |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 58.00/76.13mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H 20G upgrade reverse

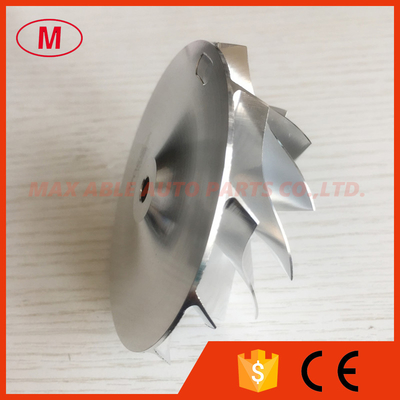

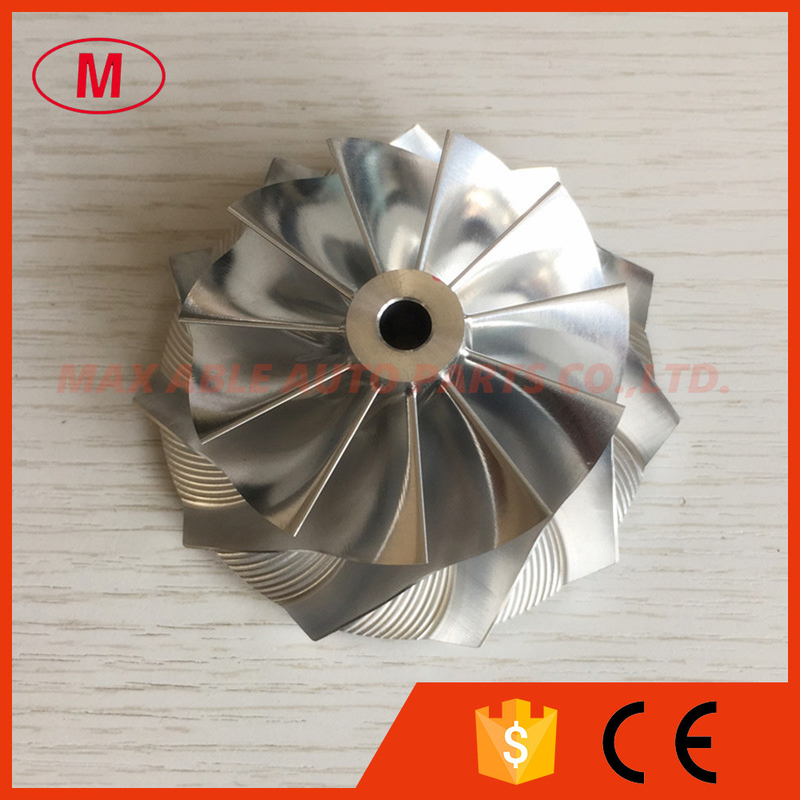

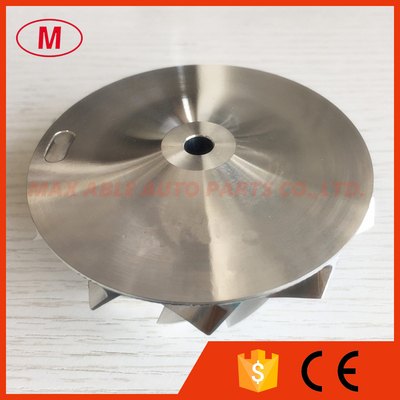

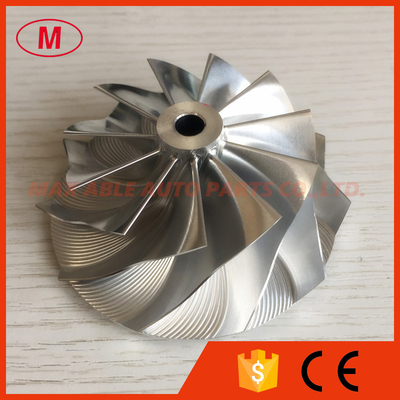

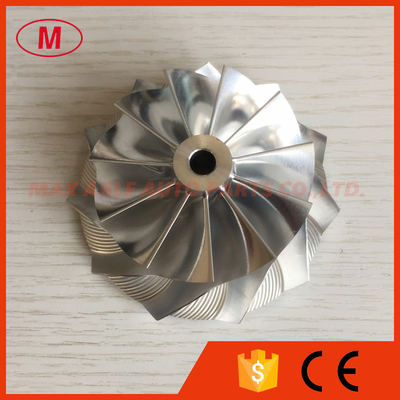

2.TD05H-20G upgrade 58.00/76.13mm reverse 11+0 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:14.78mm
inducer:58.00mm
Inducer:76.13mm
Tapered tip exducer:80.49mm
Tip height:7.72mm
Superback:2.90mm
Overall height:33.25mm
bore size :6.50mm
bore type:through
Trailing angle:50
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:27.27mm
11+0 blades
reverse rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
