| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 59.05/76.13mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H forward

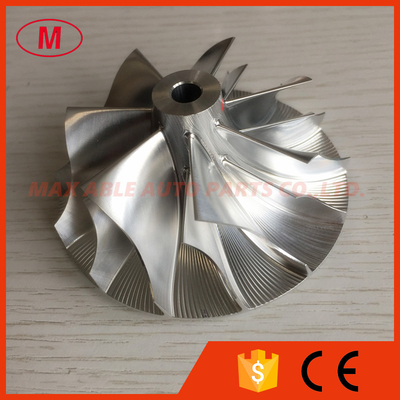

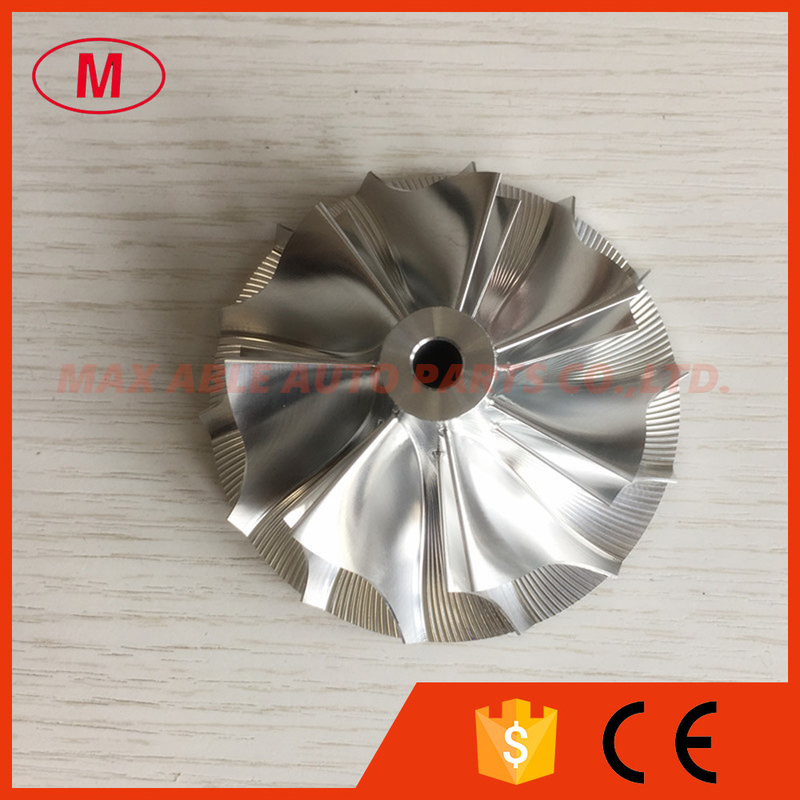

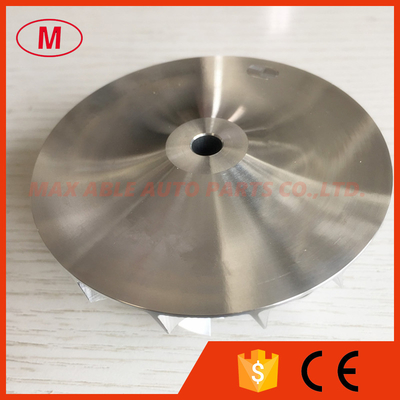

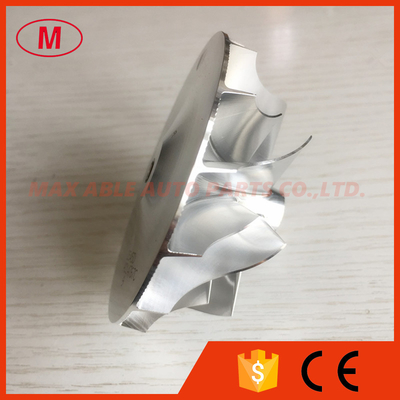

2. TD05H 59.05/76.13mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:15.04mm
Inducer:59.05mm
Exducer:76.13mm
Tip height:7.97mm
Superback:2.90mm
Overall height:35.00mm
Bore Size:6.50mm
bore type:through
Trailing angle:70 degree
Cutback:3.5
Blades height:26.98mm
Splitter height:18.40mm
Sp height angle:-1.00
7+7 blades
forward rotation
Tapered tip angle:0 degree
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
