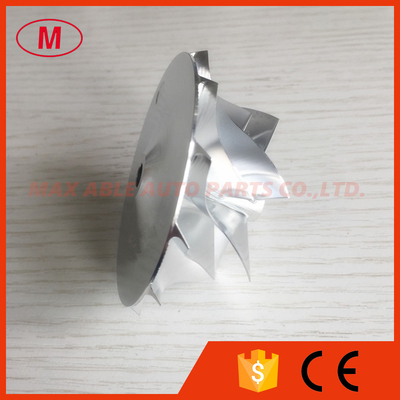

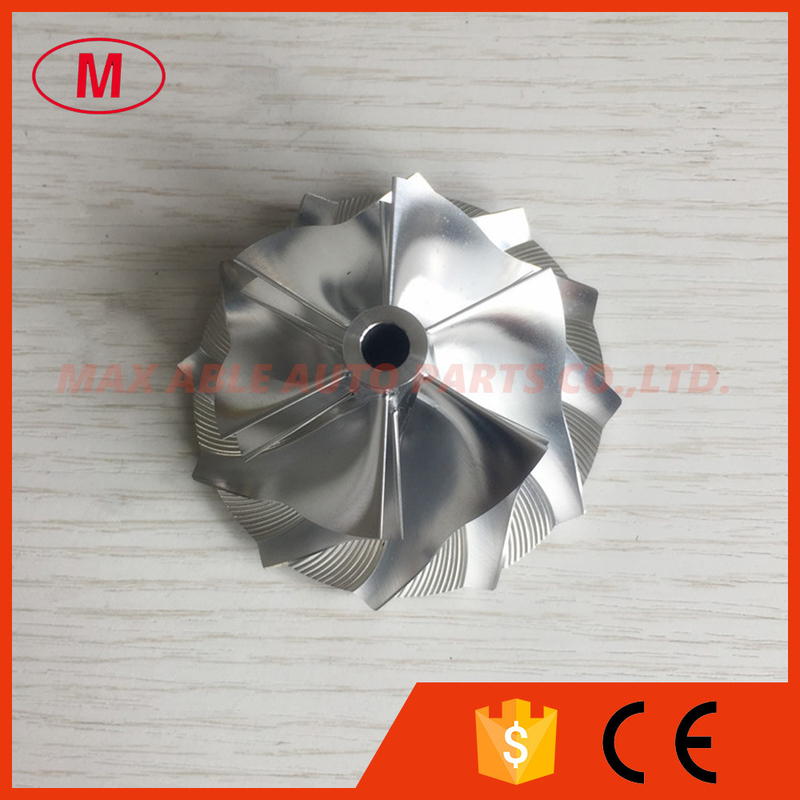

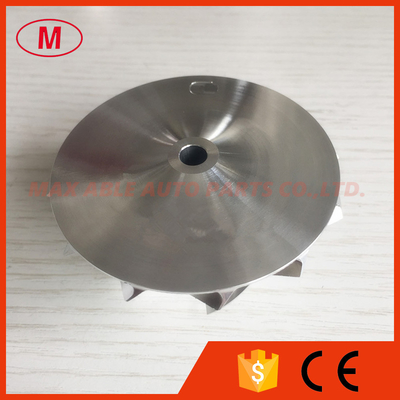

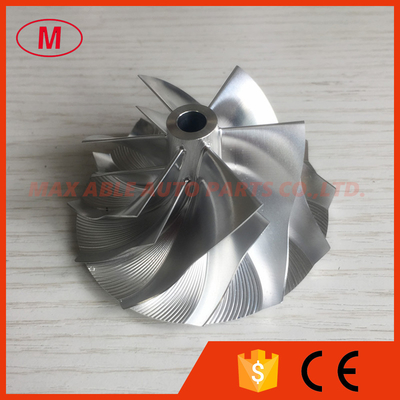

TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos Billet compressor wheel

TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos Billet compressor wheel

    • TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheel
    • TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheel
    • TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheel
    • TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheel
  • TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheel

    Product Details:

    Model Number: TD05H 16G reverse

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H 16G reverse

    2.TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde high performance High Blade Height Slimnos Turbo Billet/milling/Aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:11.51mm

    inducer:50.50mm

    Inducer:68.01mm

    Tapered tip exducer:72.18mm

    Tip height:4.61mm

    Superback:2.90mm

    Overall height:35.00mm

    bore size :6.50mm

    bore type:through

    Blades height:28.70mm

    Trailing Angle:45 degree

    Tapered tip Angle: 30 degree

    Cutback:0.0

    Splitter height:19.90mm

    Sp height angle:-2.00

    It is custom size ,please check carefully before buying

    6+6 Blades

    reverse rotation

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheelTD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheelTD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheelTD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheelTD05H 16G 50.50/68.01mm 6+6 blades 49178-01560 reverse upgarde performance High Blade Slimnos  Billet compressor wheel
