| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 43.40/56.02mm | Type: | Turbochargers |
|---|
1. MODE:TD04HL 16g reverse

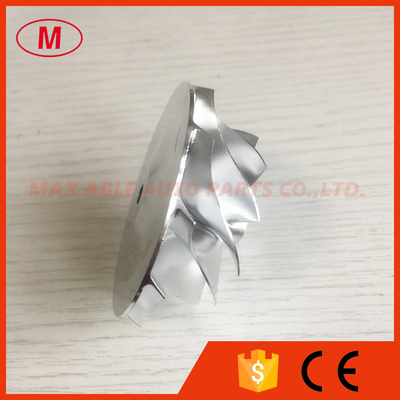

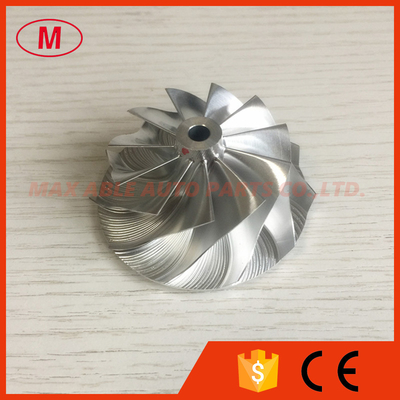

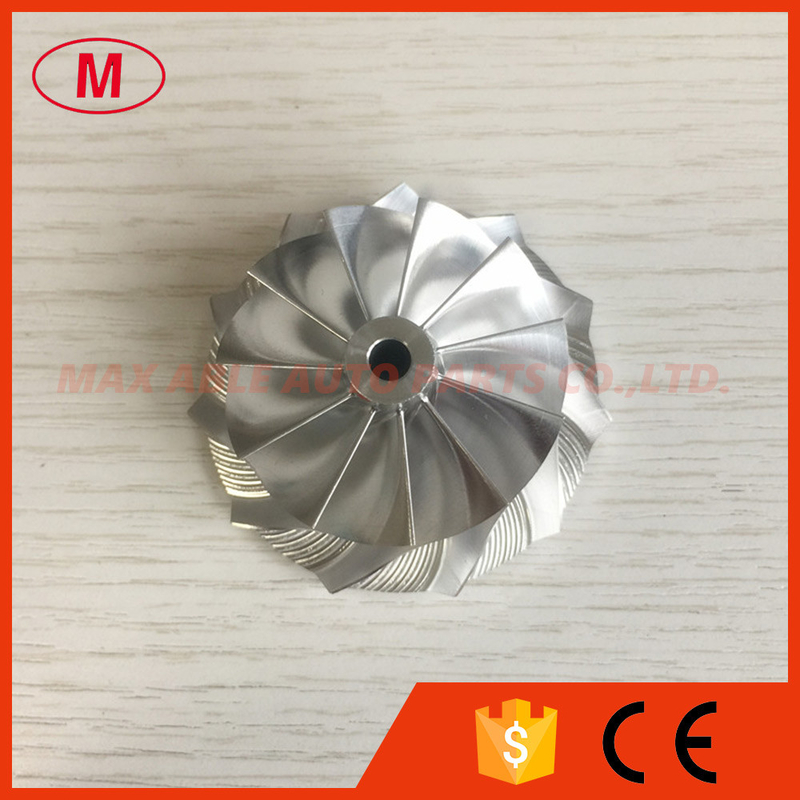

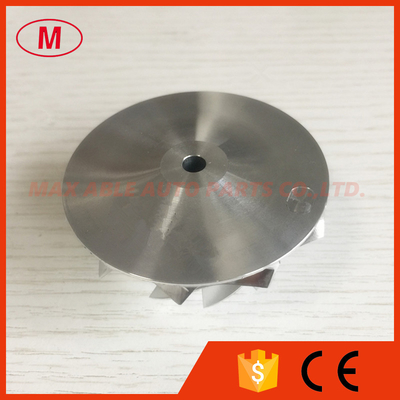

2. TD04HL 16G reverse 43.40/56.02mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel for 49377-00220
3.Size:
Nose diameter:10.73mm
Inducer:43.40mm
exducer:56.02mm
Tapered tip exducer:58.73mm
Tip height:5.17mm
Superback:1.83mm
Overall height:25.80mm
Bore size:5.00mm
Trailing angle:55 degree
Cutback:0.0
Sp height angle:0.00
Splitter height:0.00mm
Blade height:20.17mm
11+0 blades
Reverse rotation
Tapered tip angle:18 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.We can produce as your requirement.
