| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:T04E forward

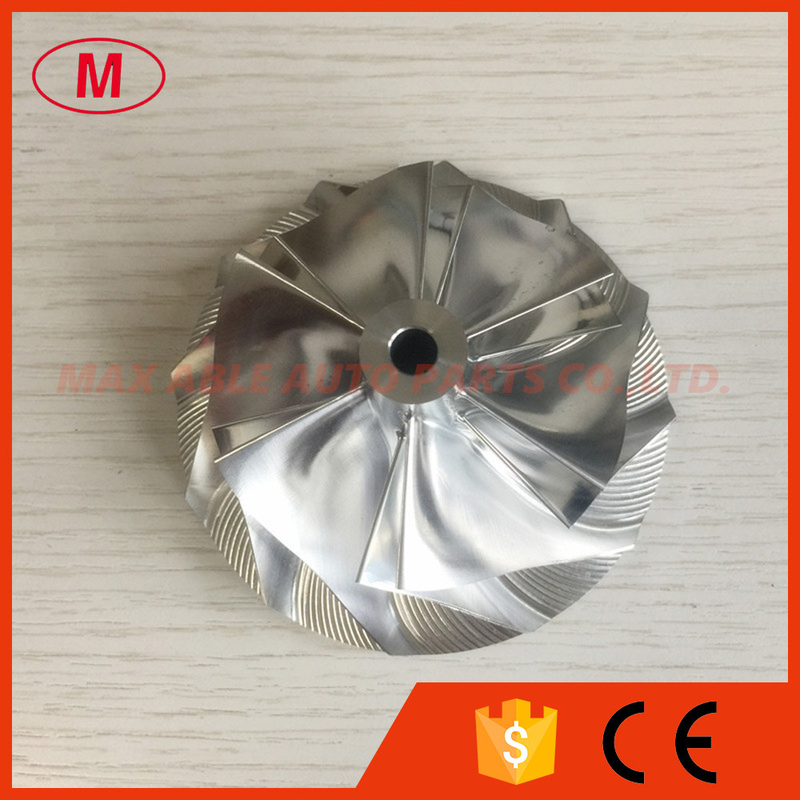

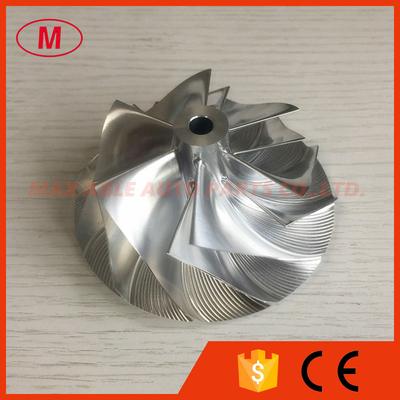

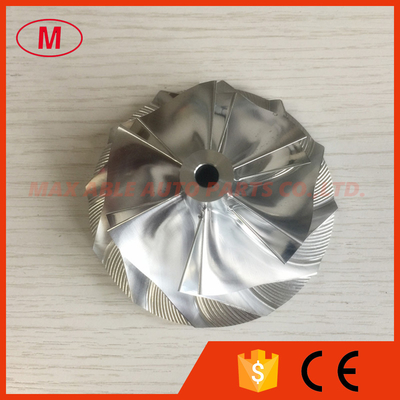

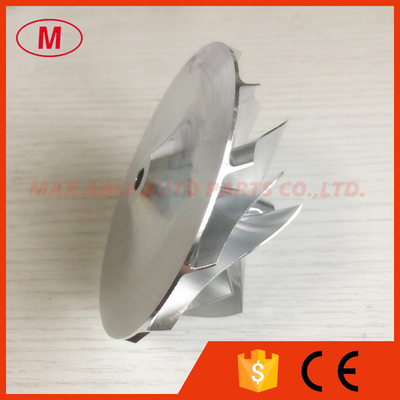

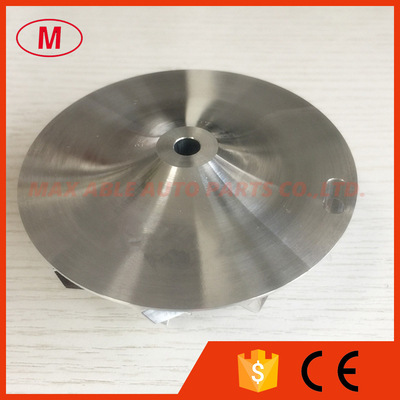

2. T04E 62.24/82.00mm 6+6 blades turbocharger billet/milling/alumimun 2618 compressor wheel
3.Size:
Nose diameter:14.50mm
inducer:62.24mm
Exducer:82.00mm
Tip height:6.50mm
Superback:4.96mm
Overall height:39.37mm
Bore size:6.35mm
bore type:through
Trailing Angle:60 degree
Sp height angle:-1.00
Splitter height:20.10mm
Blades height:28.87mm
Cutback:3.5mm
Tapered tip angle: 0 degree
6 long 6 short.
Forward rotation
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
