| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:T04E forward

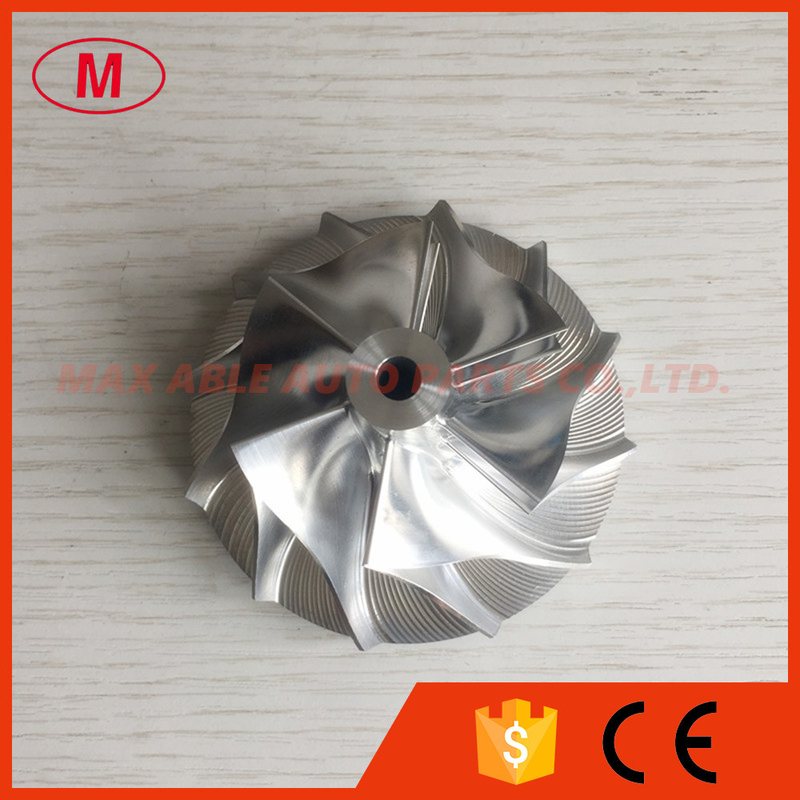

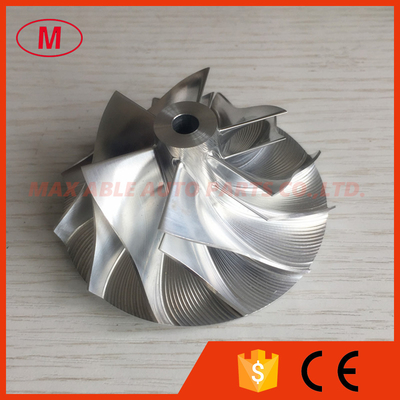

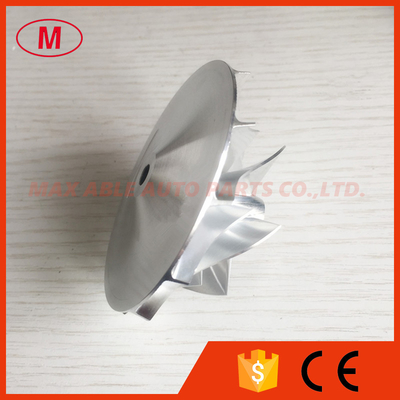

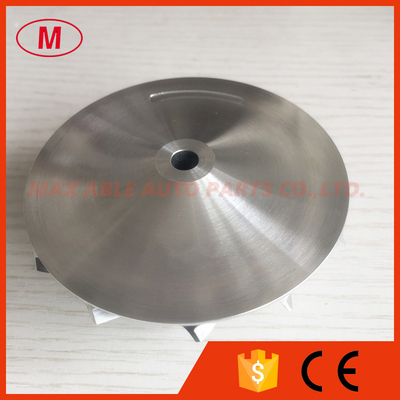

2. T04E 52.84/76.07mm 6+6 blades turbo billet/milling/alumimun 2618 compressor wheel
3.Size:
Nose diameter:15.28mm
inducer:52.84mm
Exducer:76.07mm
Tapered tip exducer:79.12mm
Tip height:5.69mm
Superback:4.97mm
Overall height:37.15mm
Bore size:6.35mm
bore type:through
Trailing angle:55 degree
Cutback:0.0
Blades height:27.07mm
Splitter height:17.75mm
Sp height angle:-5.40
6+6 blades
forward rotation
Tapered tip angle: 18 degree
It is fit for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
