Customer Satisfy is the eternal pursue of corporation.
Brand Name: | no |
Certification: | ISO |
Model Number: | RHF5 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | Neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |
1. MODEL:RHF5 forward

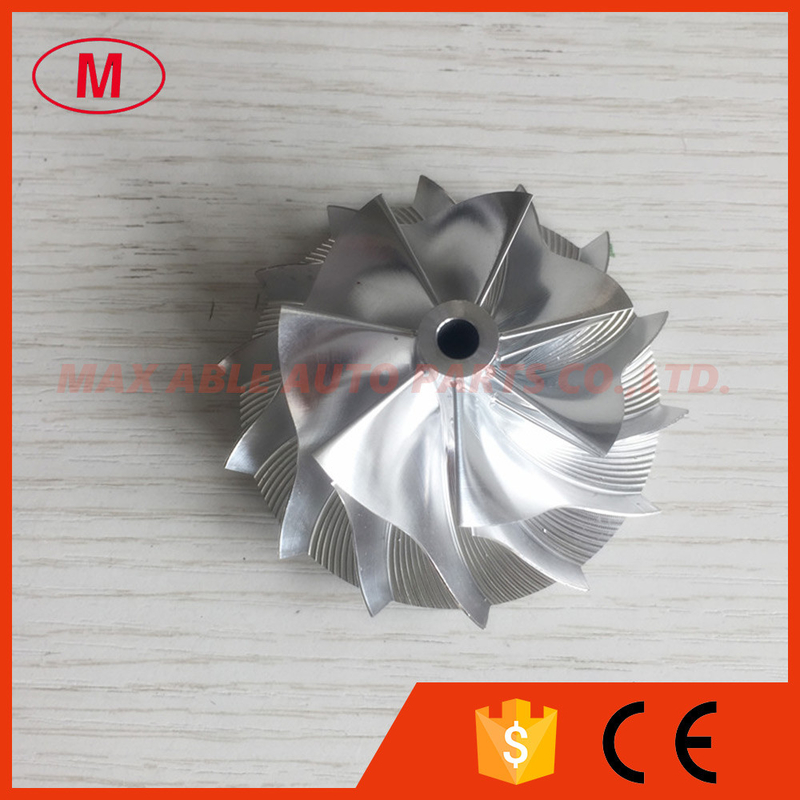

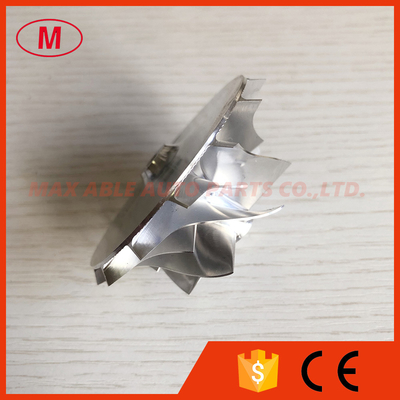

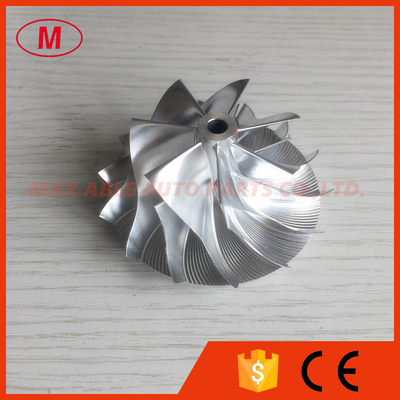

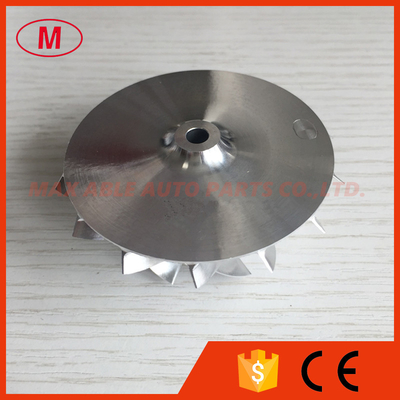

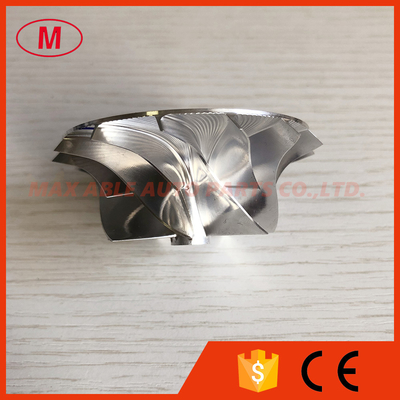

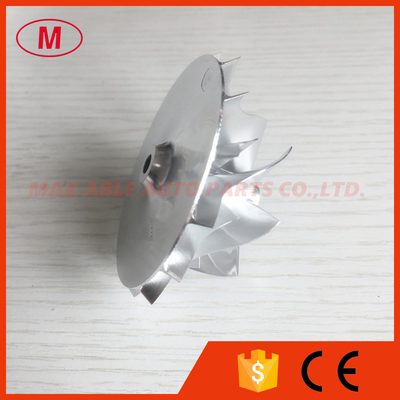

2.RHF5 45.00/61.98mm 7+7 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:10.05mm
Inducer:45.00mm
exducer:61.98mm
Tapered tip:68.20mm
Tip height :4.71mm
superback:4.00mm
Overall height:31.11mm
Bore size:5.10mm
Trailing Angle:60
Cutback:0.0
SP height Angle:-8.50
Blade height:25.10mm
Splitter Height:15.00
7+7 blades
Tapered tip Angle: 40 degree
It is Custom size,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
