Home ProductsBillet compressor wheel

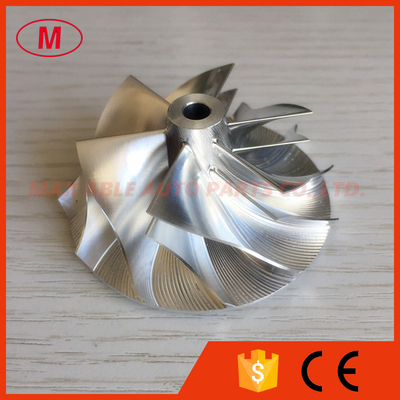

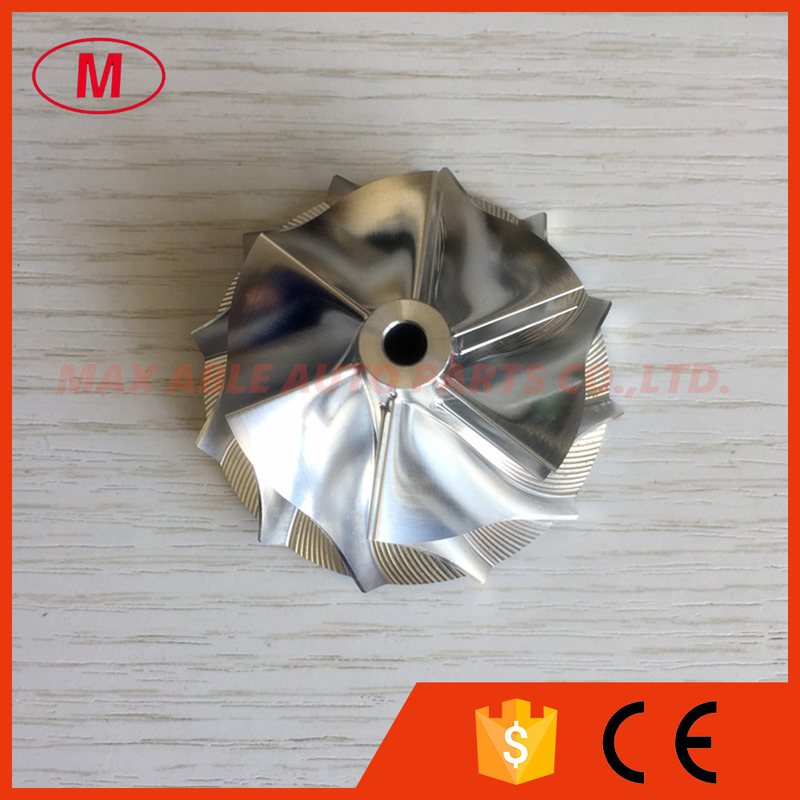

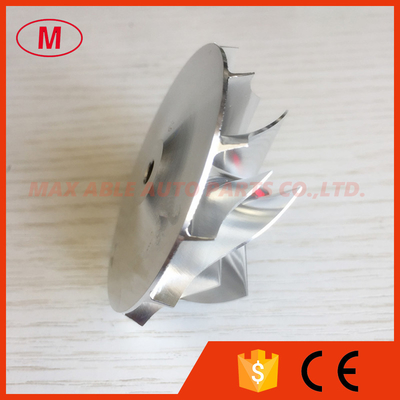

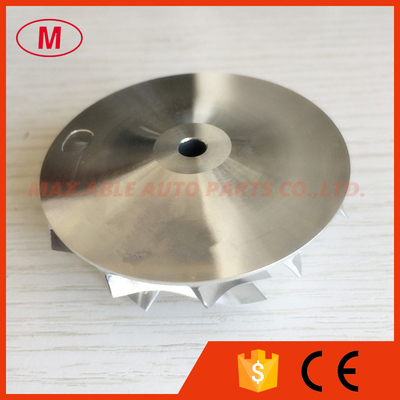

TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD04HL 18T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 18T forward
    2.TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:

    Nose Diameter:10.91mm

    inducer:45.01mm

    Exducer:56.02mm

    Tapered tip exducer:58.76mm

    Tip height:5.22mm

    Superback:1.83mm

    Overall height:25.71mm

    Bore size:5.00mm

    bore type:through

    Trailing angle:55 degree

    Cutback:0.0

    Blades height:20.06mm

    Splitter height:14.50mm

    Sp height angle:0.00

    6+6 blades

    forward rotation

    Tapered tip angle:18 degree

    It is fit for OE compressor housing

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel

    TD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 18T 45.01/56.02mm 6+6 blades 49189-43800 Turbocharger milling/aluminum 2618/billet compressor wheel
