Customer Satisfy is the eternal pursue of corporation.
Brand Name: | NO |
Model Number: | TD05H 20G |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
1. MODEL:TD05H 20G forward

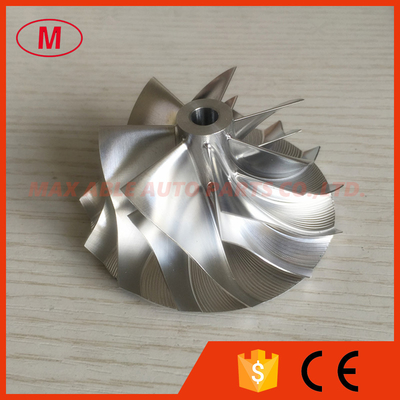

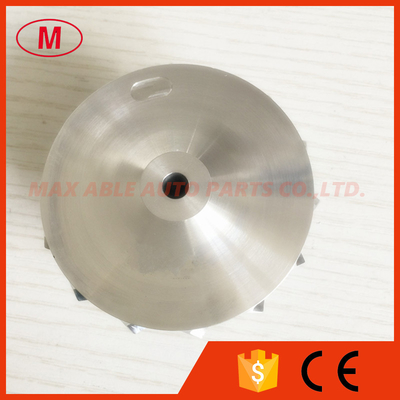

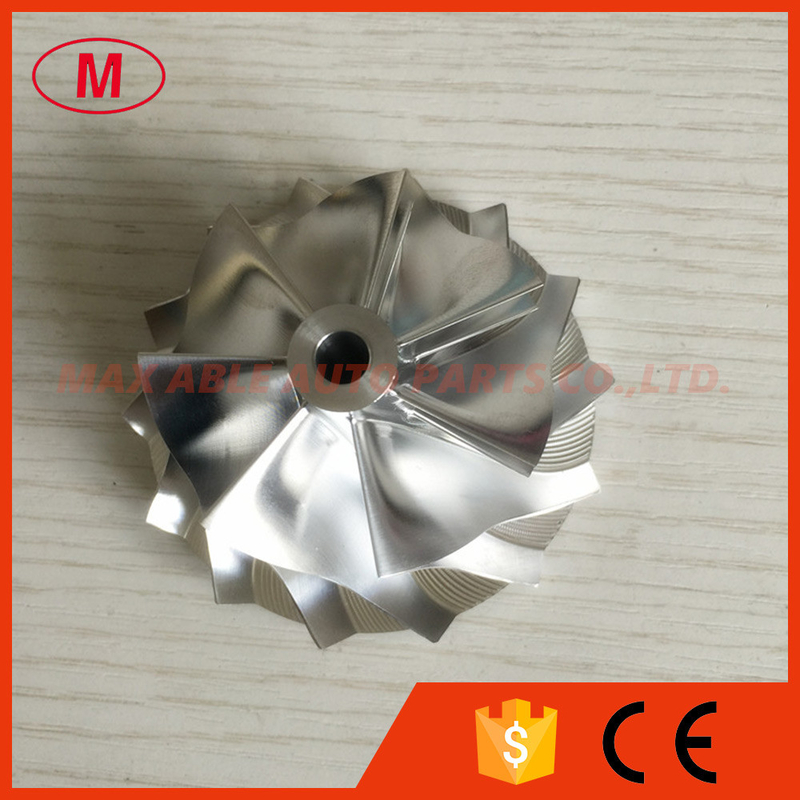

2.TD05H 20G 52.56/68.01mm 49179-43400 7+7 blades high performance Turbo
Billet/milling/aluminum 2618 compressor wheel for MITSUBISHI
3.Size:
Nose diameter:13.50mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
bore type:through
Trailing Angle:45
Cutback:0.0
SP Height angle:-6.00
Blades height :28.90mm
Splitter height:18.85mm
Tapered tip Angle:30 degree
7+7 BLADES.
Forward rotation
FIT for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
