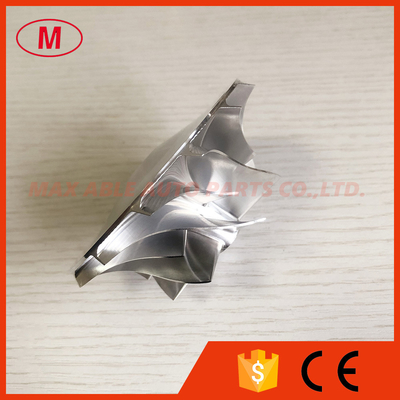

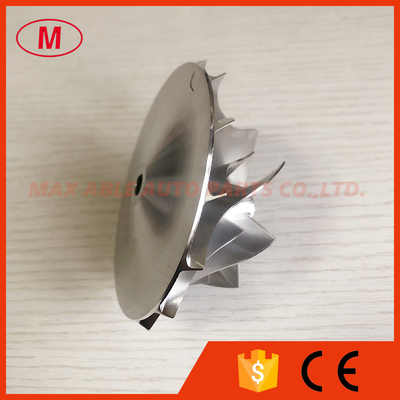

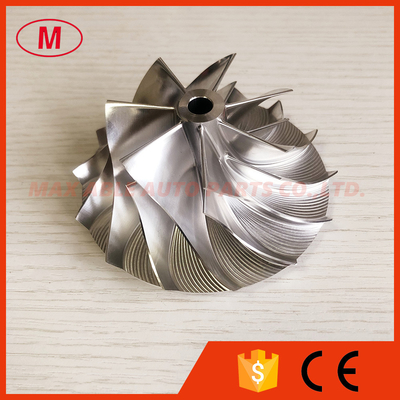

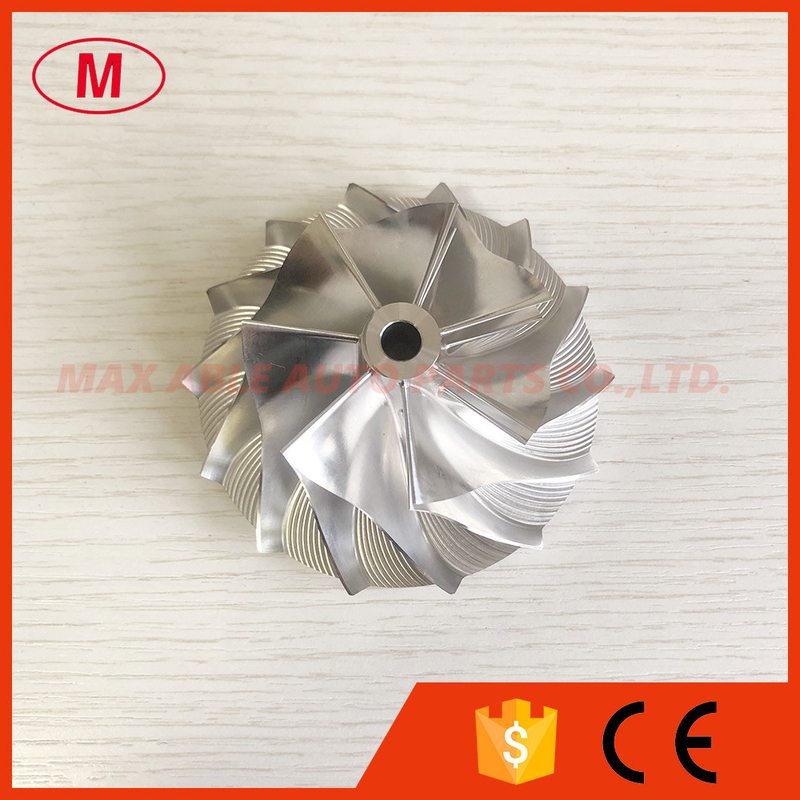

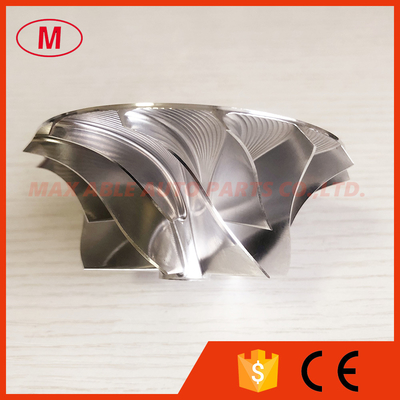

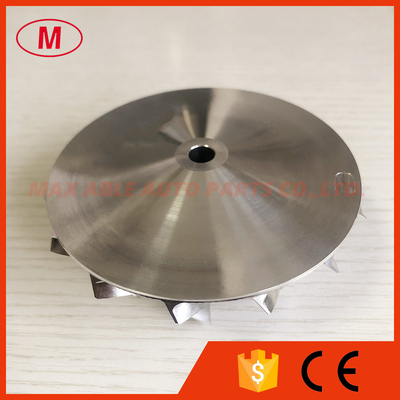

HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel

HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel

    • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
    • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
    • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
    • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
    • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
    • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
  • HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: HX40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description
    Size: 56.00/83.03mm Type: Turbochargers

    1.  MODEL:HX40 forward

    2.  HX40 3599593 56.00/83.03mm 7+7  blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for  3534921/4035626/3532494/3597501

    Size:

    Nose diameter:13.91mm

    inducer:56.00mm

    Exducer:83.03mm

    Tapered tip exducer:88.22mm

    Tip height:5.50mm

    Superback:5.01mm

    Bore size:7.00mm

    Blade height:32.86mm

    cutback:0.00

    splitter height:21.85mm

    sp height angle:-9.40

    Overall height:39.76mm

    7+7 blades

    Bore type:through

    trailing angle:60 degree

    Tapered tip angle:30 degree

    it is for OE compressor housing

    4.High quality and competitive price.

    5.Any questions please send email to me.

    6.Application:

    3534921

    4035626

    3532494

    3597501

    All the compressor wheels have been balanced.

    we can produce as your requirement ,the minimun order is 5pcs
