| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TB25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:TB25 forward

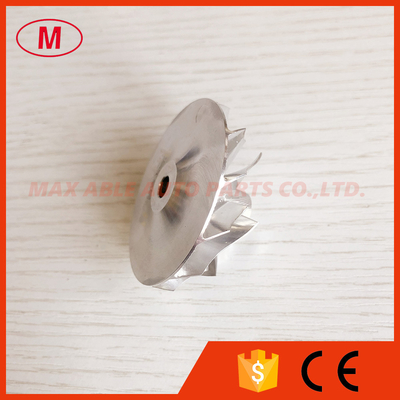

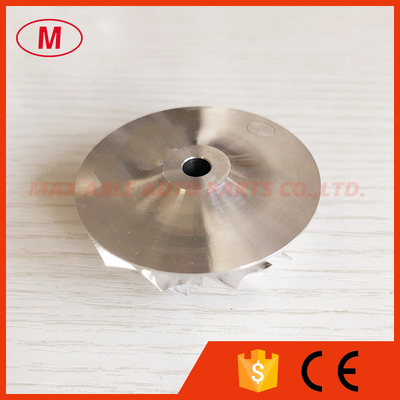

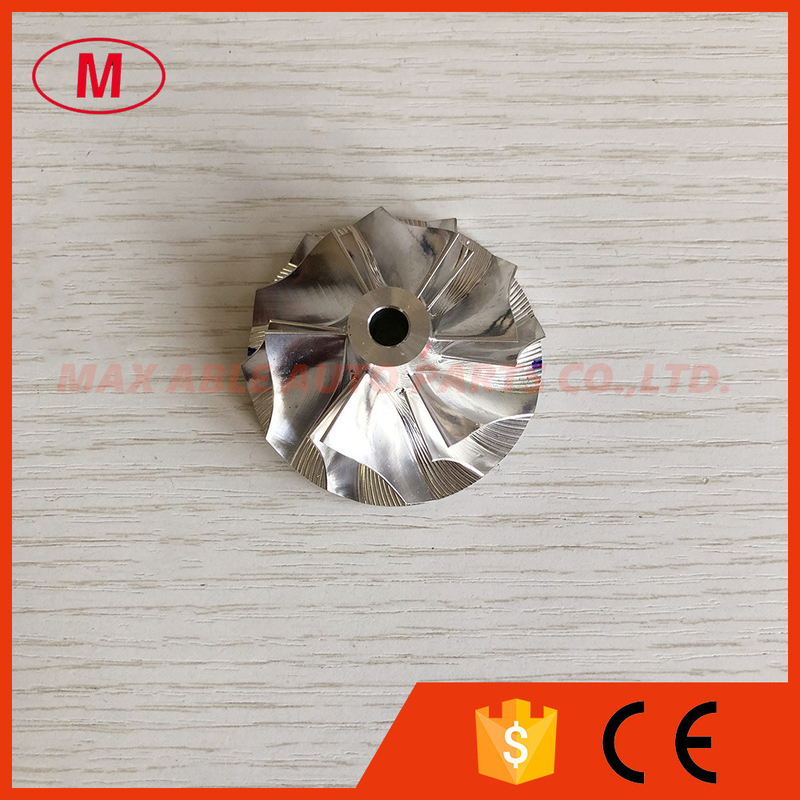

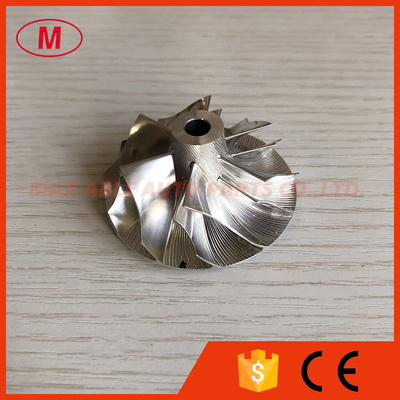

2.TB25 431350-0001e 39.80/51.37mm 6+6blades turbo milling/aluminum 2618/billet compressor wheel for 709390-0001 BME ALPINA B10
3.Size:
Nose diameter:12.75mm
inducer:39.80mm
Exduder:51.37mm
Tip height:6.53mm
Superback:2.24mm
Overall height:24.50mm
bore size :5.99mm
bore type:through
Trailing Angle:50 degree
Cutback:0.0mm
Blade height:16.76mm
Splitter height:12.15mm
Sp height angle:-1.00
6+6 blades
Forward rotation
It is for OE compressor housing
Tapered tip Angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
