Home ProductsBillet compressor wheel

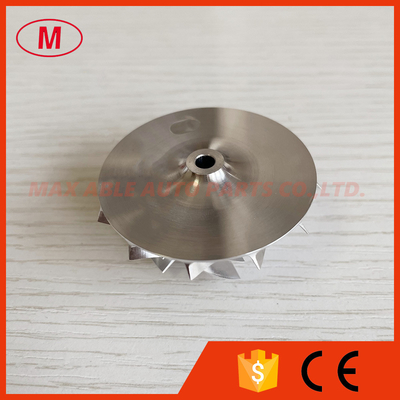

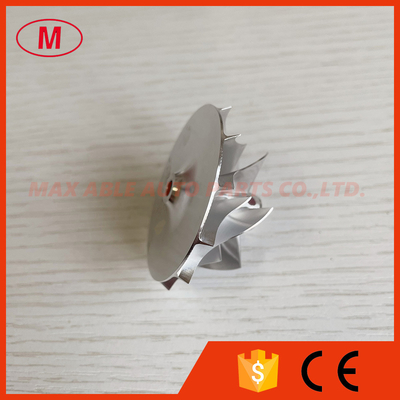

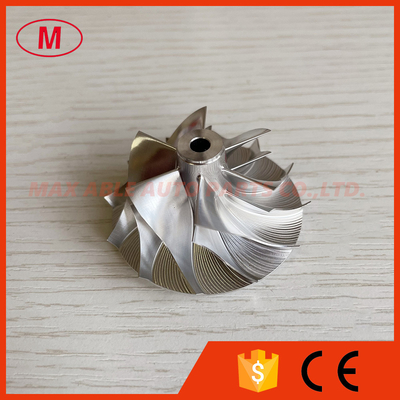

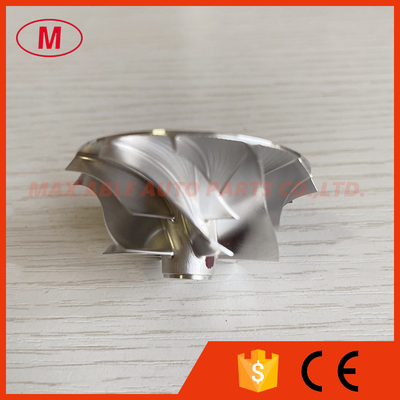

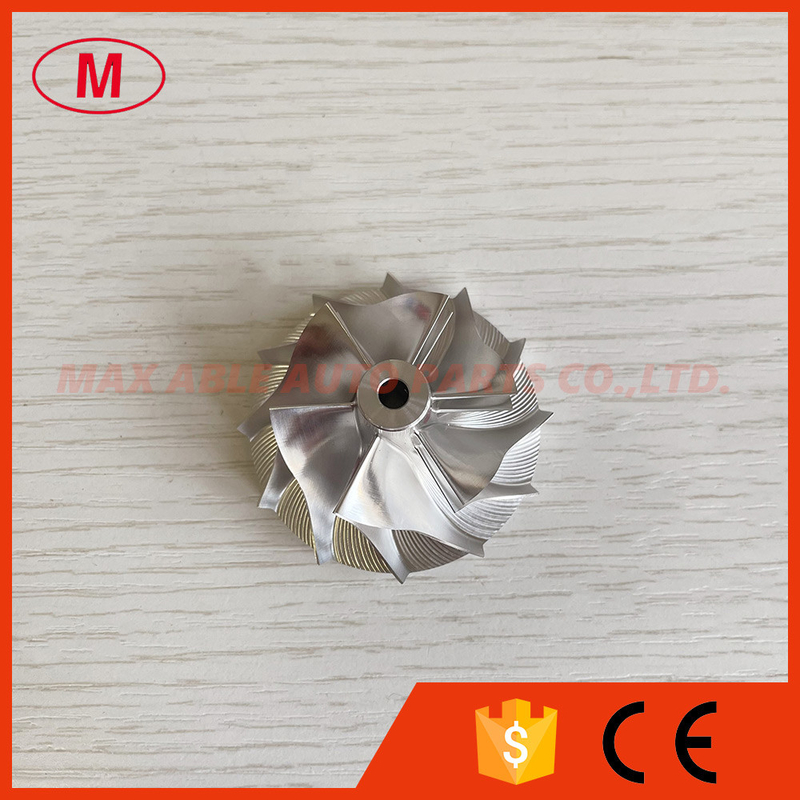

KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005

KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005

    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
    • KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: KP39

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:KP39 forward

    2.KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005/12/16
    3.Size:
    Nose diameter:10.08mm
    Inducer:34.50mm
    exducer:46.00mm
    Tapered tip exducer:49.32mm
    Tip height:3.87mm
    Superback:2.81mm
    bore size :4.10mm
    bore type:through
    Overall height:24.62mm
    Cutback:0.0
    Trailing Angle:75 degree
    SP Height angle:-4.00
    Blades height:17.84mm
    Splitter height:11.90mm
    6+6 blades
    forward rotation
    Fit for OE compressor housing
    Tapered tip Angle:30 degree
    Application:

    5439-970-0005
    5439-970-0012
    5439-970-0016

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced
    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719

    .KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005

    KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005KP39 5443-123-2007 1303-039-401 34.50/46.00mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 5439-970-0005
