Home ProductsBillet compressor wheel

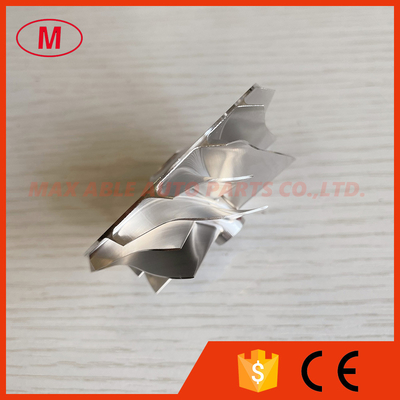

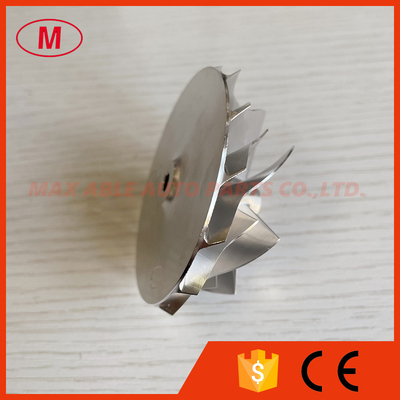

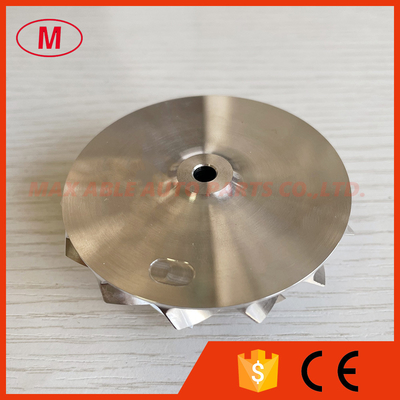

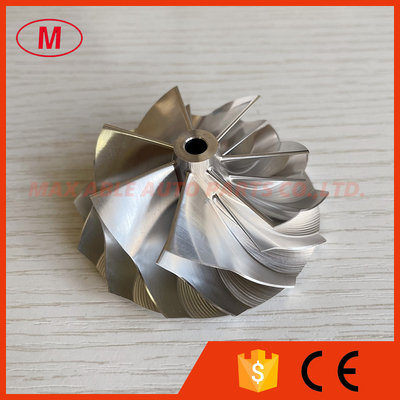

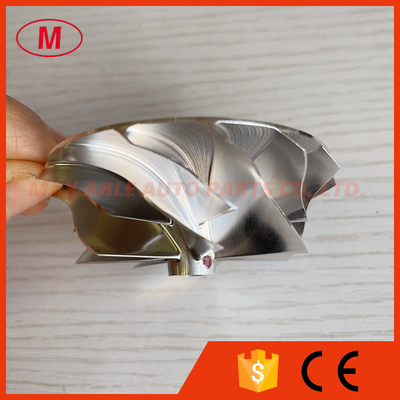

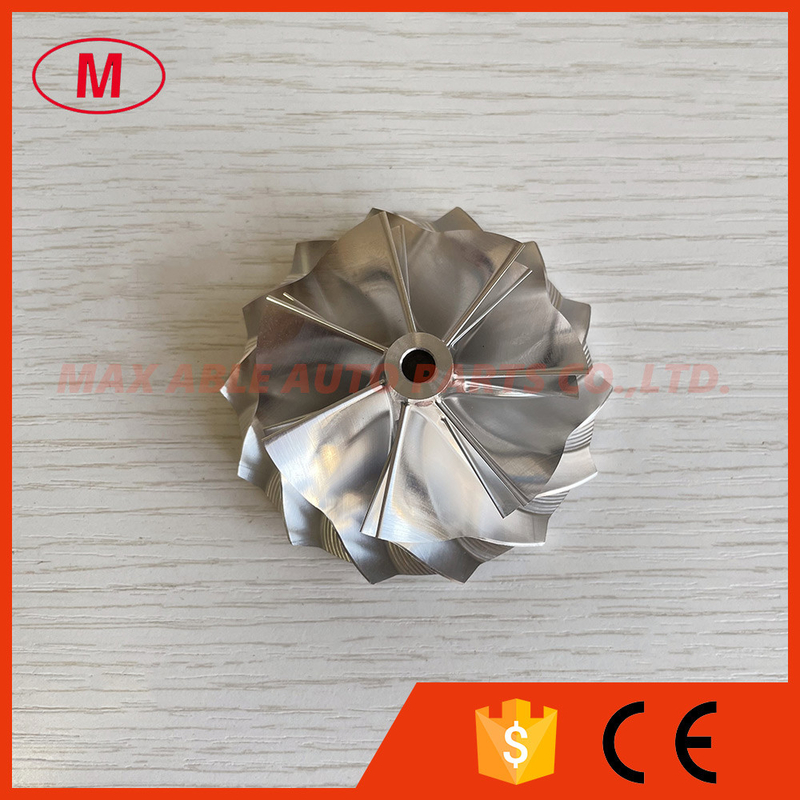

TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel

TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel

    • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
    • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
    • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
    • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
    • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
    • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
  • TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel

    Product Details:

    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel for turbo

    2.SIZE:

    Nose diameter:10.16mm

    inducer:51.03mm

    Exducer:62.00mm

    Tapered tip exducer:66.15mm

    Tip height:4.59mm

    Superback:1.90mm

    Overall height:25.78mm

    bore size :5.00mm

    Trailing angle:45 degree

    Cutback:0.0

    SP Height angle:-1.20 degree

    Blades height:20.56mm

    Splitter height:13.90mm

    7+7blades

    forward rotation

    Tapered tip angle:30 degree

    It is custom size ,please check carefully before buying.

    4.Good quality and competitive price

    5.Please send email to me or talk to me on online ,if you want to know more details.

    All the billet compressor wheel have been balanced.

    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719

    .

    TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
    TD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheelTD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheelTD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheelTD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheelTD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheelTD04 51.03/62.00mm 7+7 blades Turbo aluminum 2618/milling/ billet compressor wheel
