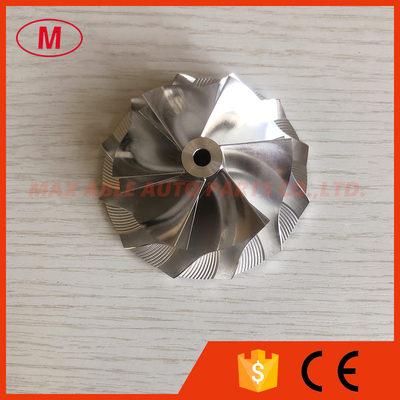

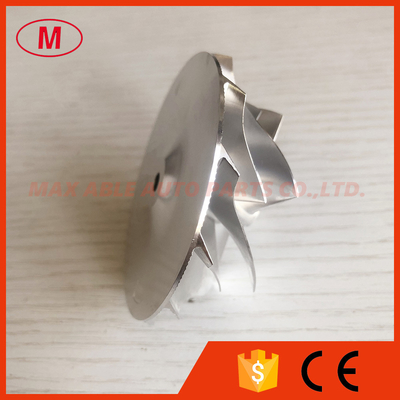

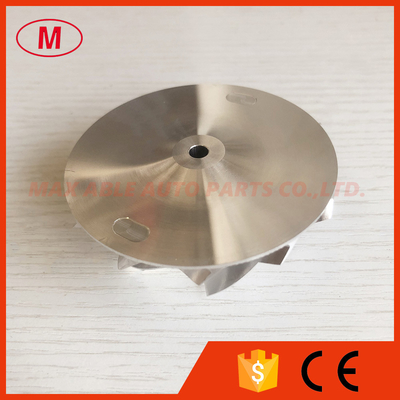

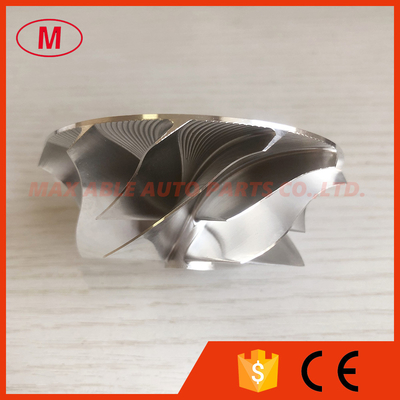

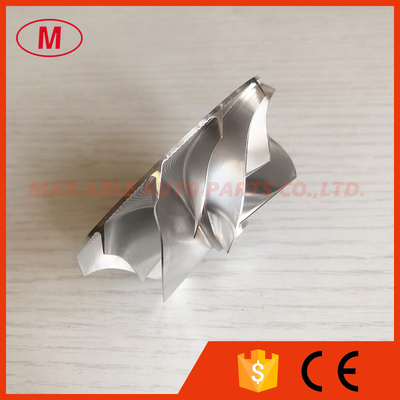

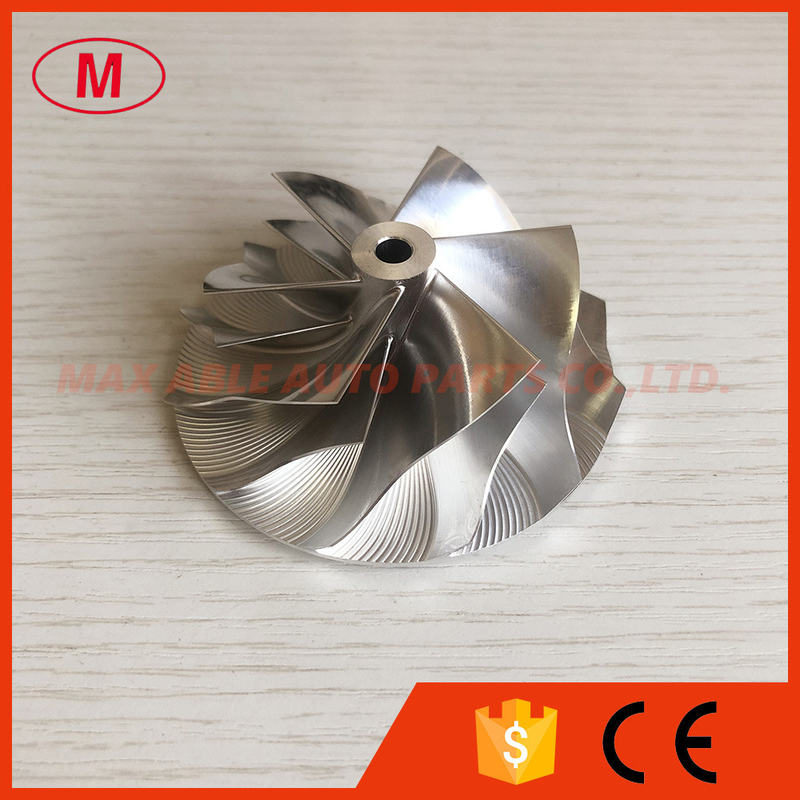

RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: RHF5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:RHF5 Reverse
    2.RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:12.09mm
    Inducer:54.00mm
    exducer:71.00mm
    Tapered tip exducer:73.00mm
    Tip height:5.64mm
    Superback:1.90mm
    bore size :5.10mm
    Bore type:through
    Overall height:28.70mm
    Cutback:0.0
    Trailing Angle:45
    SP height angle:-5.00
    Blade height:25.08mm
    Splitter height:17.40mm
    6+6 blades reverse
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:12.2 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719
    RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    RHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheelRHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheelRHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheelRHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheelRHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheelRHF5 reverse 54.00/71.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
