| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G upgrade reverse

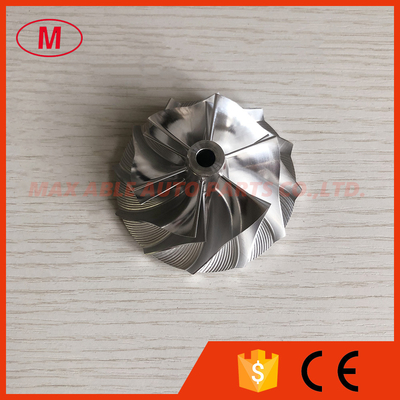

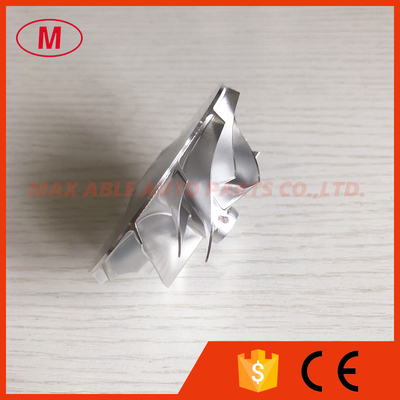

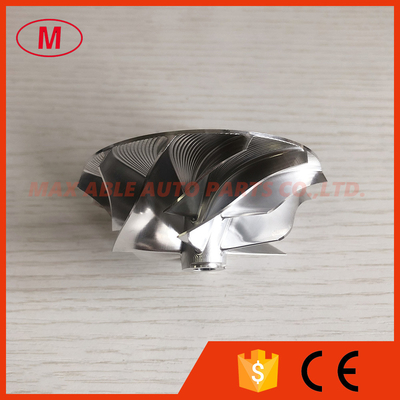

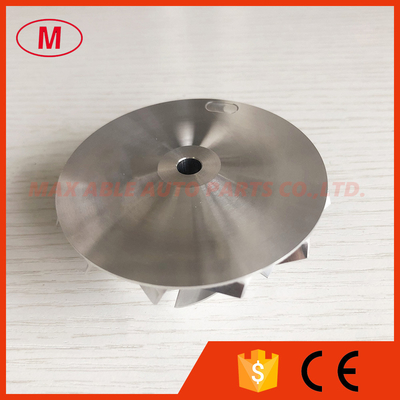

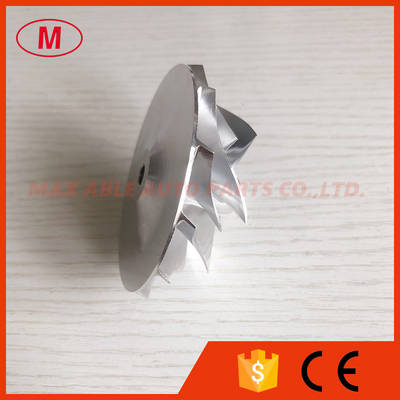

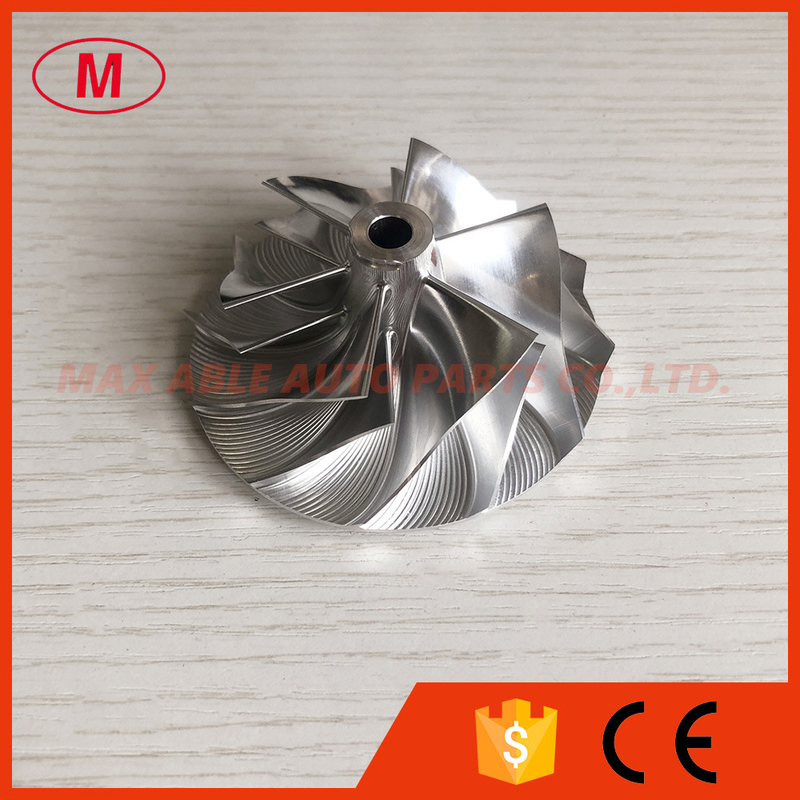

2.TD05H 20G upgrade reverse 53.11/70.98mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.85mm
inducer:53.11mm
Inducer:70.98mm
Tapered tip exducer:73.92mm
Tip height:5.52mm
Superback:2.90mm
Overall height:31.50mm
Trailing angle:60
bore size :6.50mm
cutback:0.0
SP height nagle:-7.00
Blade height:24.08mm
splitter height:17.20mm
6+6 blades
reverse rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
