Home ProductsBillet compressor wheel

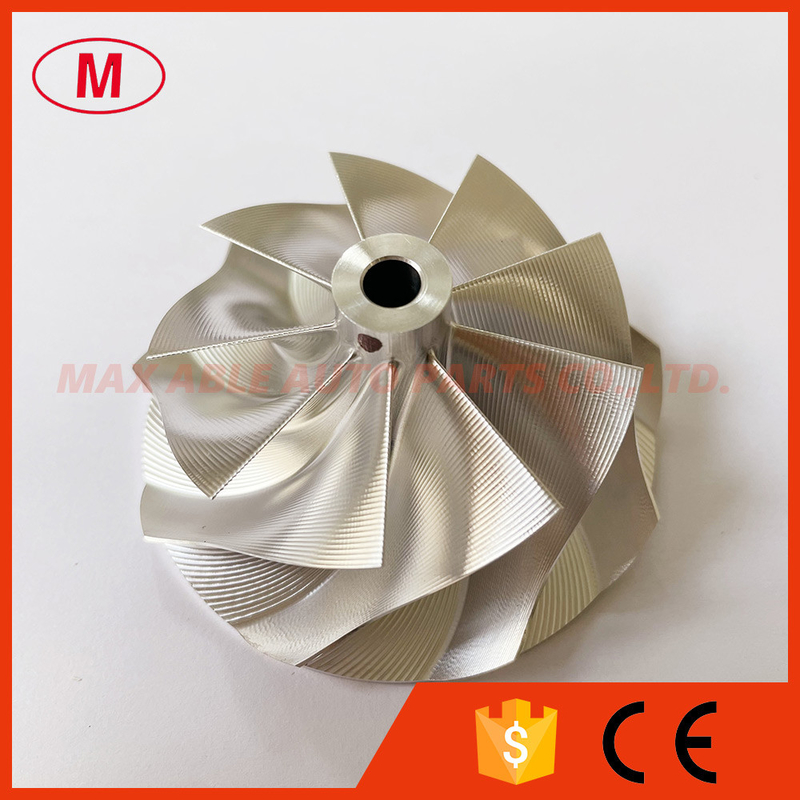

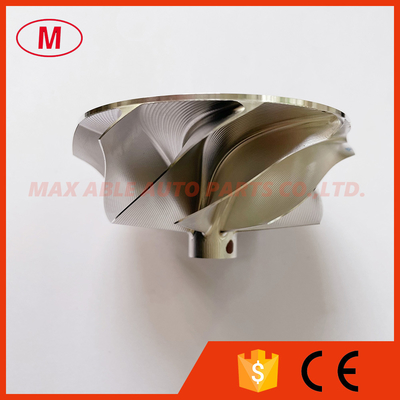

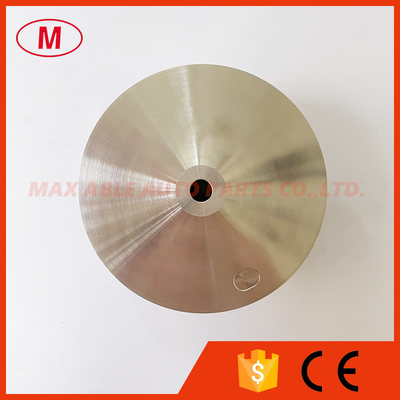

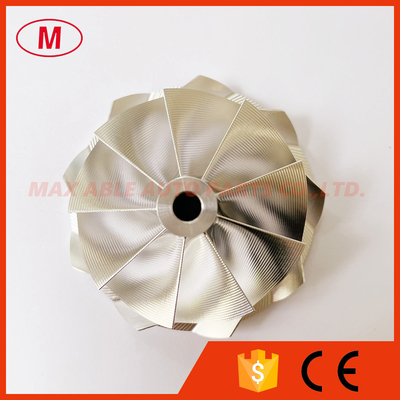

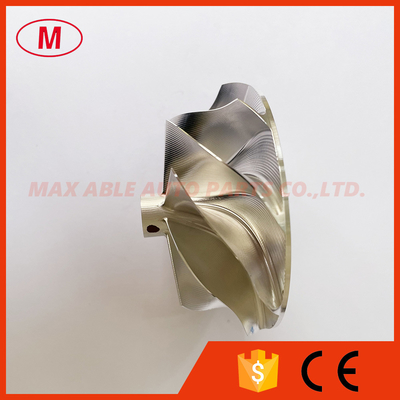

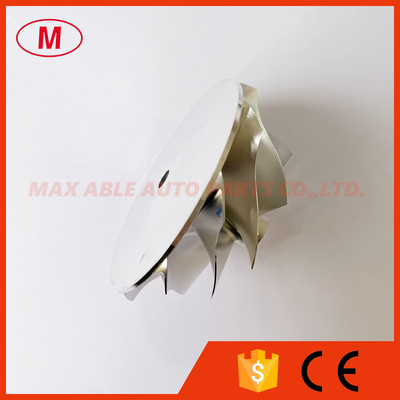

G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm

G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm

    • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
    • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
    • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
    • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
    • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
    • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
  • G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: G25-660

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:G25-660 reverse

    2.G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel

    3.Size:

    Nose diameter:12.40mm

    Inducer:54.28mm

    Exducer:67.40mm

    Tapered tip exducer:69.80mm

    Tip height:7.17mm

    Trailing angle:35

    Superback:1.53mm

    Bore:6.00

    Cutback:6.6

    Overall height:33.85mm

    SP Height angle:0.00

    Blades height:26.05mm

    Splitter height:0.00mm

    9+0 blades

    Tapered tip angle:11.4 degree

    reverse rotation

    It is for OE compressor housing



    4.Good quality and competitive price

    5.if you want to know more details ,please send email to me !



    All the compressor wheel have been balanced.

    we can produce as your requirement ,the minimum order is 5pcs.

    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719

    G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
    G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mmG25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mmG25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mmG25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mmG25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mmG25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mmG25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/billet compressor wheel Superback:1.53mm
