| Brand Name: | NO |
| Model Number: | TD04HL 18G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

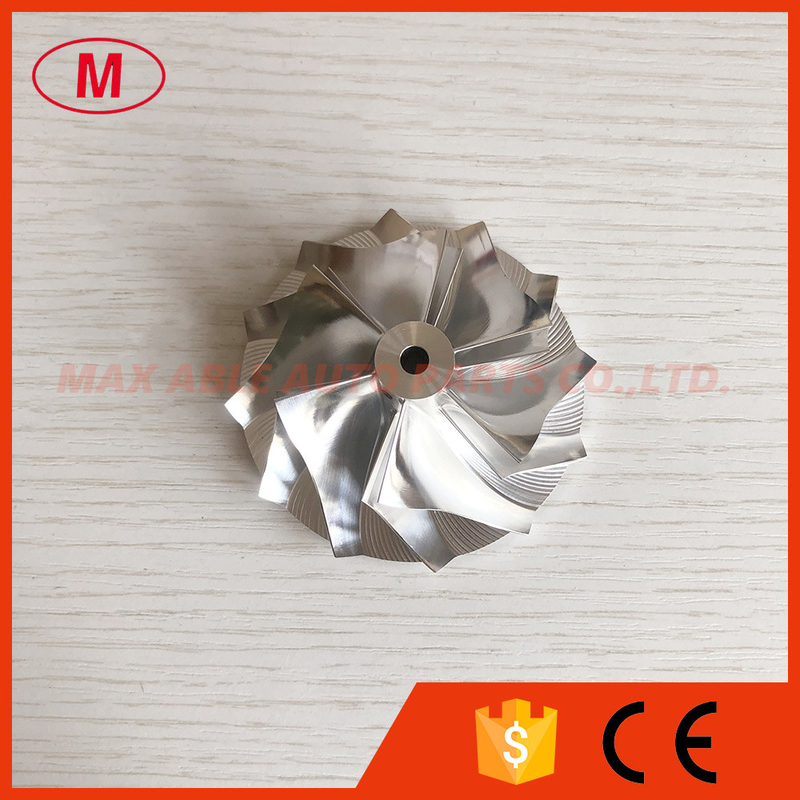

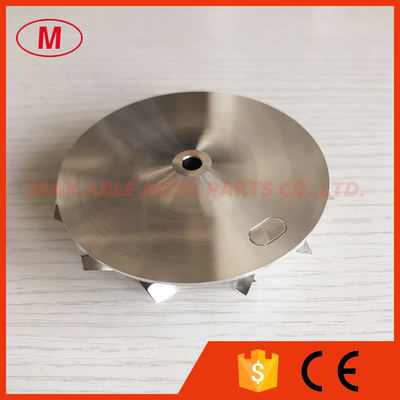

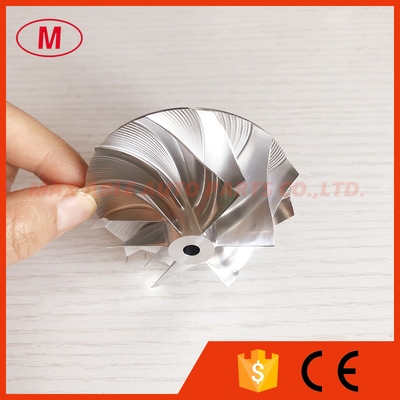

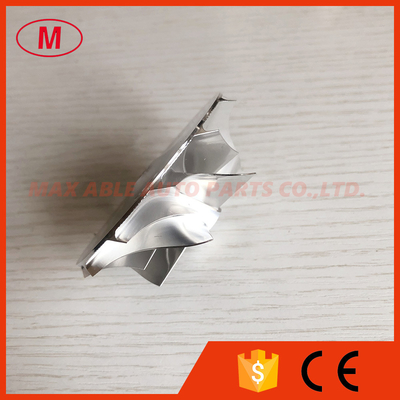

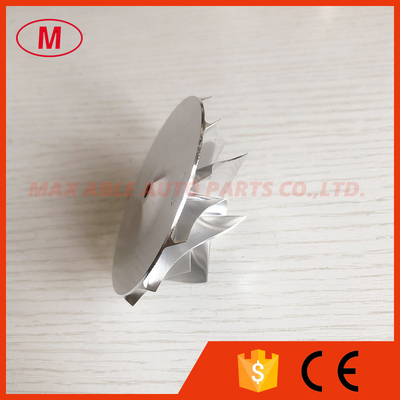

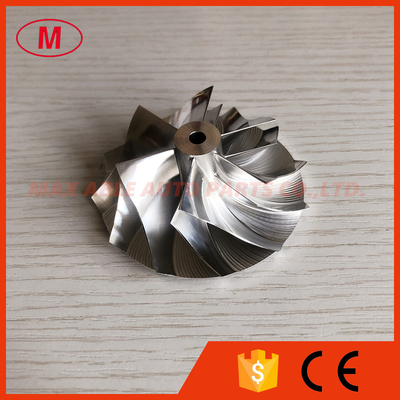

1.Model:TD04HL 18G
3.Size:
Nose diamter:13.99mm
inducer:50.38mm
Exduder:68.00mm
Tapered tip exducer:72.45mm
Tip height:4.85mm
Superback:1.90mm
bore size :5.00mm
Trailing Angle:45
Cutback:0.00
Blade height:22.94mm
Splitter height:15.60mm
sp height angle:-4.00
overall height:26.50mm
It is custom size,please check carefully before buying.
6+6 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
