Home ProductsBillet compressor wheel

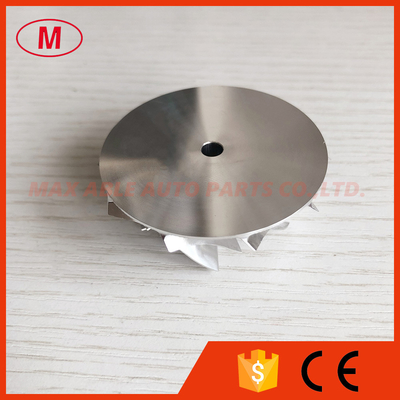

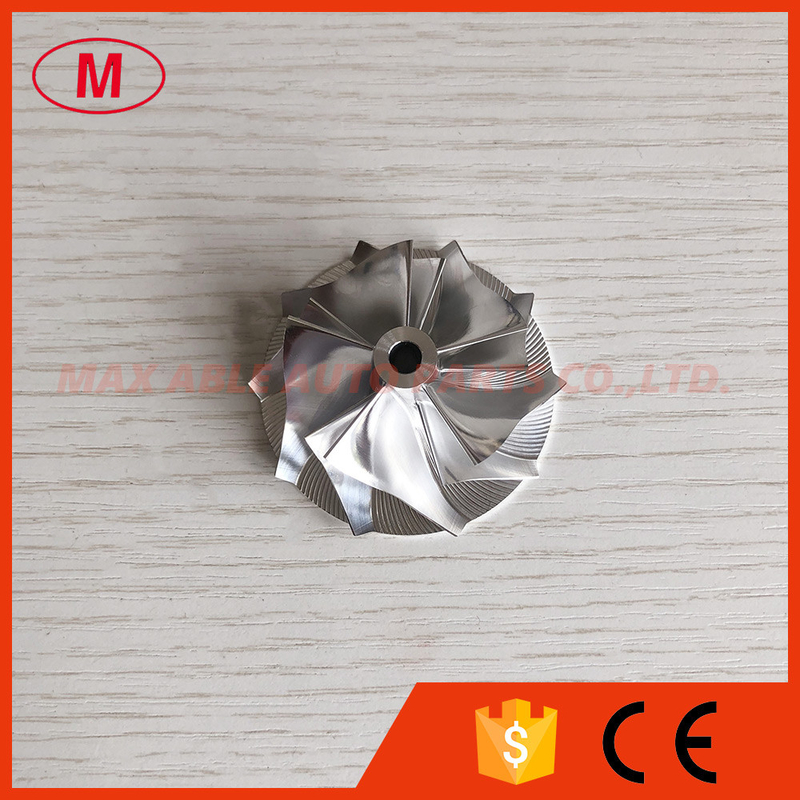

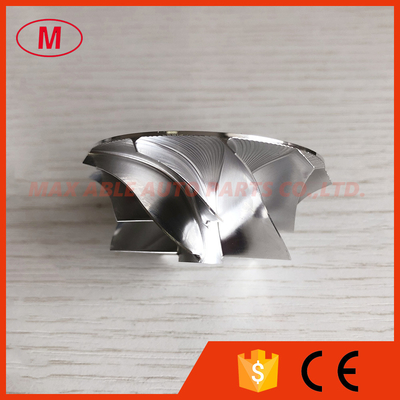

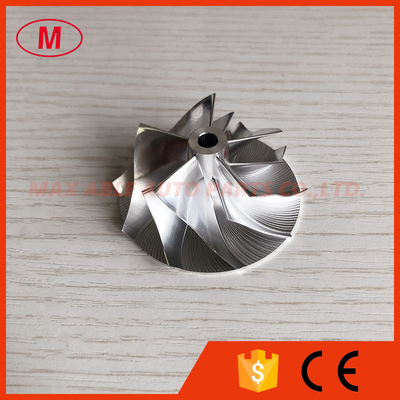

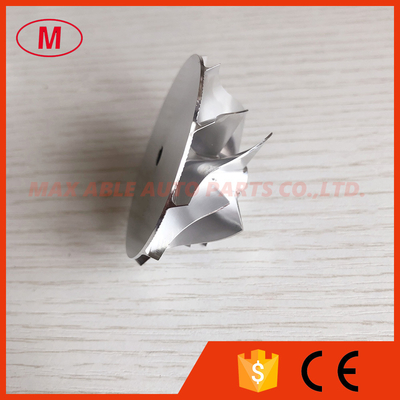

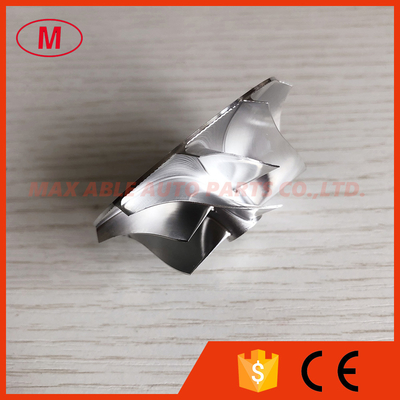

RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L

RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L

    • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
    • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
    • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
    • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
    • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
    • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
  • RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L

    Product Details:

    Brand Name: NO
    Model Number: RHB5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 32.16/52.13mm Type: Turbochargers

    1. MODEL: RHB5 forward​
    2.RHB5 40.00/52.50mm 5+5blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for Mazda 323 GTX 1.8L BP26 Upgrade
    3.Size:
    Nose diameter:9.98mm
    Inducer:40.00mm
    exducer:52.50mm
    Tapered tip exducer:56.02mm
    Tip height:4.05mm
    Superback:0.00mm
    bore size :5.10mm
    Overall height:22.60mm
    Cutback:0.0
    Splitter height:15.20mm
    Sp height angle:-5.90
    Trailing Angle:55
    Blade height:21.12mm
    5+5 blades forward
    It is for OE compressor housing
    Tapered tip Angle:30 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    All the compressor wheel have been balanced.
    RHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8LRHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8LRHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8LRHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8LRHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8LRHB5 40.00/52.50mm 5+5blades high performance turbo milling/Aluminum 2618/billet compressor wheel for Mazda 323 GTX 1.8L
