| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

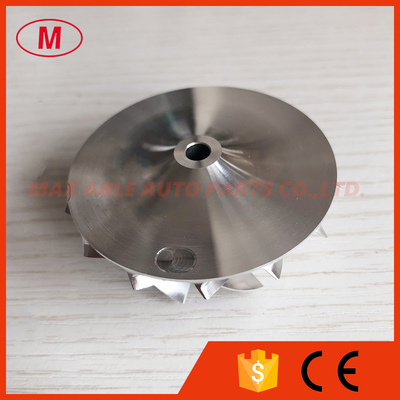

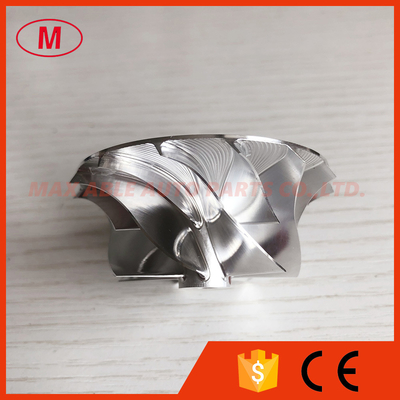

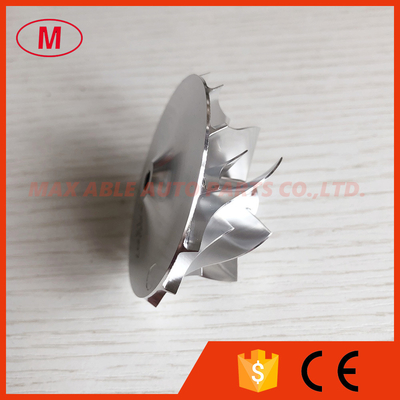

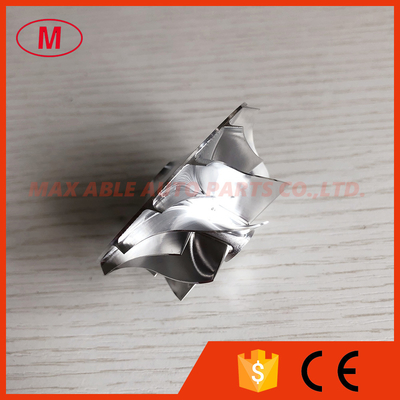

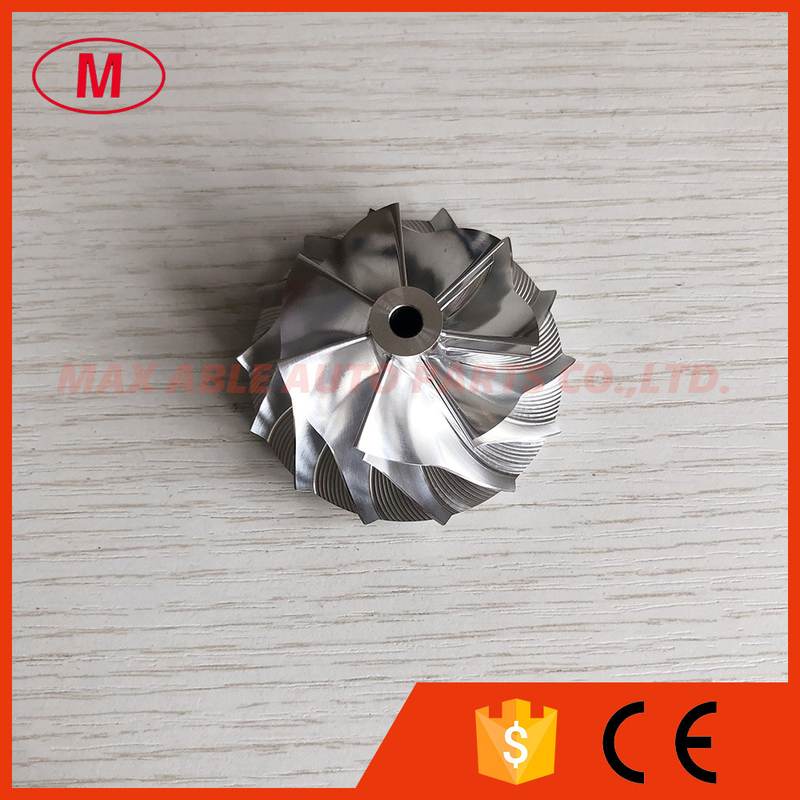

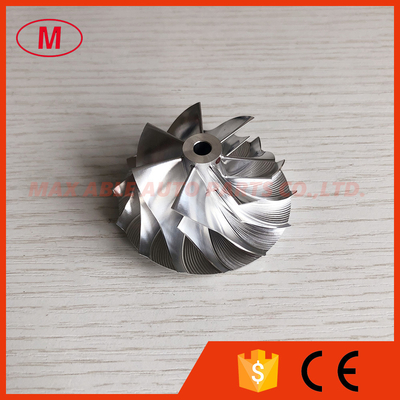

1.GT15-25 41.58/56.03mm 7+7 blades high performance Turbo Billet/aluminum 2618 compressor wheel
2.Size:
Nose diameter:11.40mm
Inducer:41.58mm
Exducer:56.03mm
Tapered Tip exducer:59.37mm
Tip height:3.89mm
Superback:3.90mm
Overall height:28.50mm
Bore size:5.08mm
Trailing angle:60 degree
Cutback:0.0
SP height angle:-6.00 degree
Blade height:22.60mm
Splitter height:13.50mm
7+7 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
3.High quality and competitive price.
4.if you want more details, please send email to me.
We can produce as your requirement.
THE MINIMUM ORDER IS 5PCS
All the compressor wheel have been balanced.
The more models we also have.
