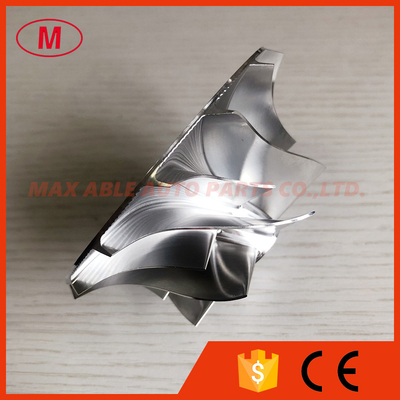

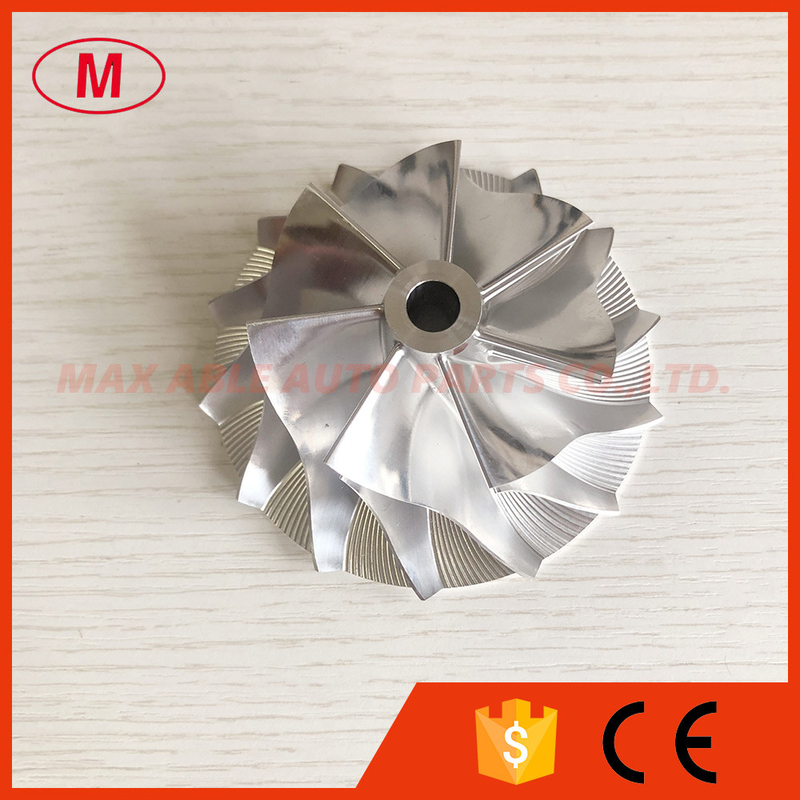

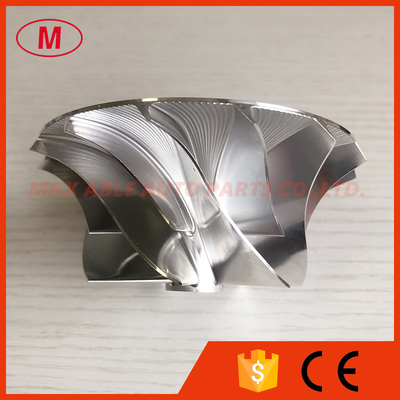

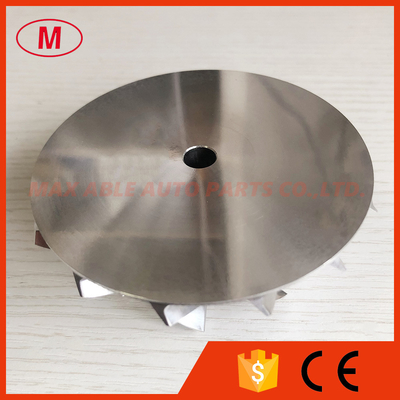

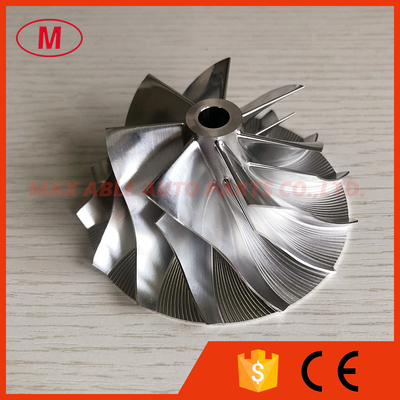

KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel

KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel

    • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
  • KTR90 59.90/85.90mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: KTR90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:KTR90 FORWARD

    2.KTR90 59.90/85.90mm 7+7blades high performance turbo billet/milling/aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:15.50mm

    inducer:59.90mm

    Exduder:85.90mm

    Tapered tip exducer:90.40mm

    Tip height:5.30mm

    Superback:0.00mm

    Overall height:38.00mm

    bore size :8.51mm

    Trailing Angle:60

    Cutback:0.00

    Blade height:36.00mm

    Tapered tip Angle:27.6 degree

    SP height Angle:-4.20

    ​Splitter Height:24.50mm

    7+7 blades

    ​Forward rotation

    It is Custom size,please check carefully before buying.

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.

    The minimun order is 5pcs.

    The more models we also have.
