| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTX4088R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:GTX4088R Forward

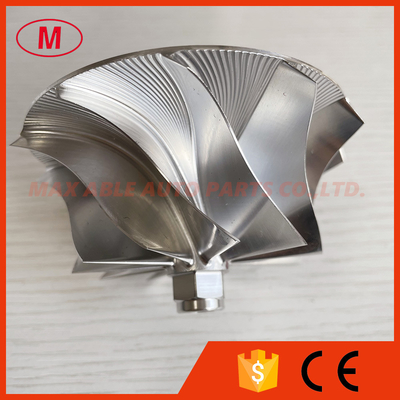

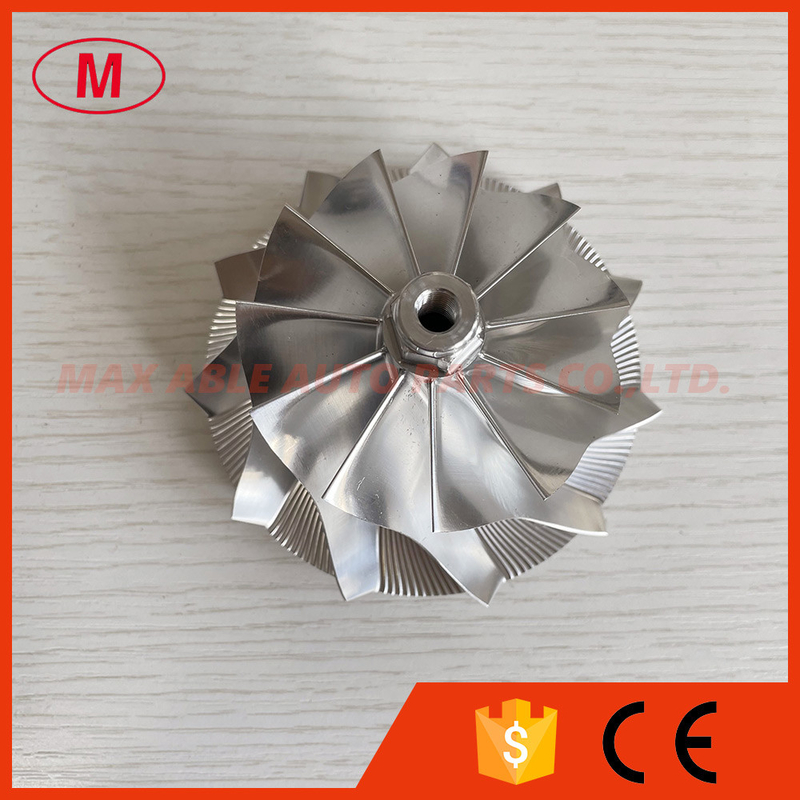

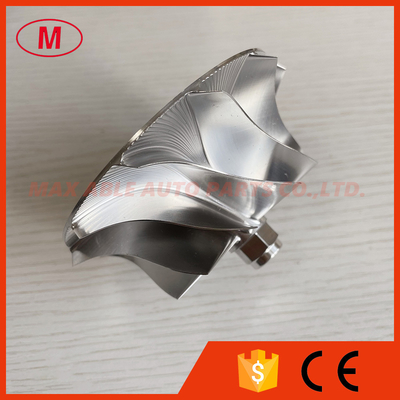

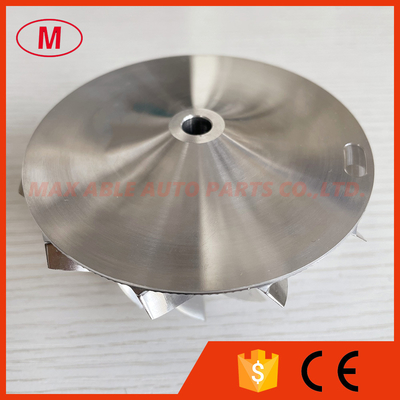

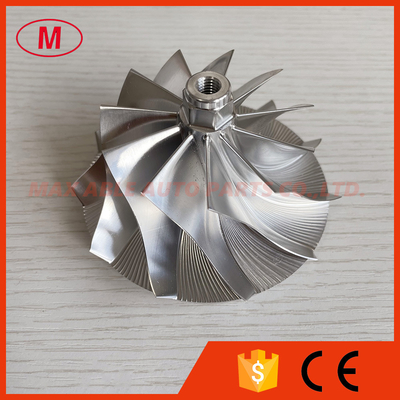

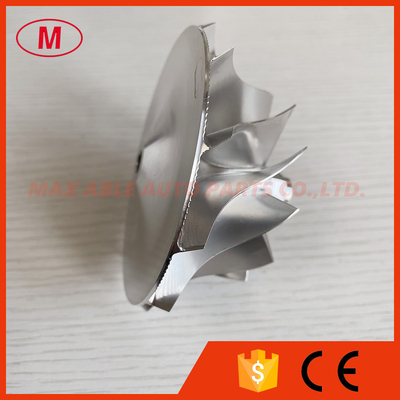

2.GTX4088R 11+0 blades 64.97/88.40mm high Performance turbo milling/aluminum 2618/billet compressor wheel for 825614-5002S/5004S/5005S/803614-2/4/5/751450-0021
3.Size:
Nose diameter:16.50mm
Inducer:64.97mm
Exducer:88.40mm
Tapered tip exducer:95.06mm
Tip height:6.76mm
Superback:5.51mm
Bore size:7.48mm
bore type:Threaded-M7x1.0LHT
Trailing angle:55
Cutback:0.0
SP height angle:0.0
Splitter height:0.00mm
Blade height:36.20mm
Overall height:53.53mm
11+0 blades
Tapered tip angle:30 degree
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
We can produce as your requirements.The minimun order is 5pcs
All the compressor wheels have been balanced.
