Home ProductsBillet compressor wheel

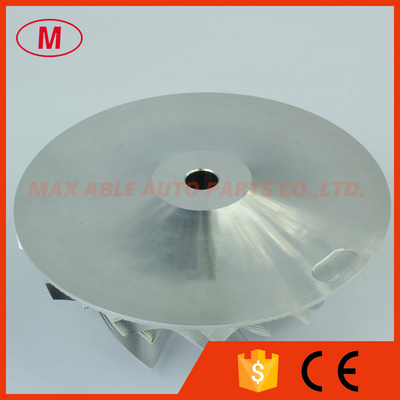

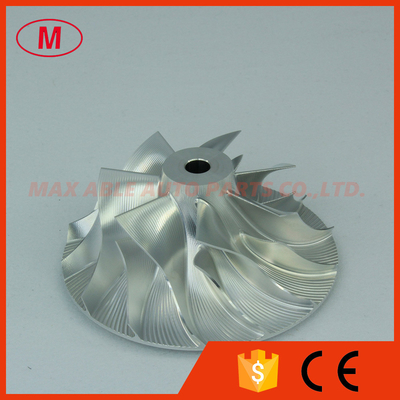

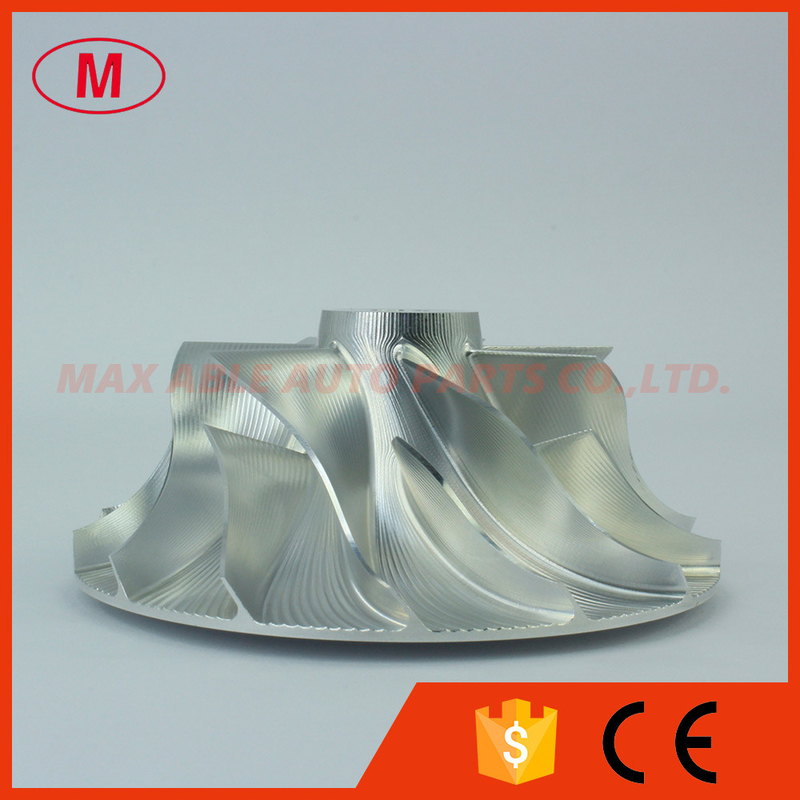

TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel

TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel

    • TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel
    • TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel
    • TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel
    • TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD06

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:TD06 Forward
    2.TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel for 49179-03700 Fuso/Truck&Bus 6M60T09TA
    3.Size:
    Nose diameter:18.30mm
    Inducer:53.00mm
    Exducer:75.00mm
    Tip height:5.15mm
    Superback:2.70mm
    Overall height:32.95mm
    Bore size:6.50mm
    Trailing angle:45
    Cutback:0.0
    SP Height angle:-17.00
    Blade height:26.10mm
    Splitter height:18.42mm
    7+7 blades
    forward rotation
    Tapered tip angle:0 degree
    It is for OE compressor housing

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    the minimun order is 5pcs
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.




    TD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheelTD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheelTD06 49179-40920 53.00/75.00mm 7+7 blades forward point milling turbo milling/aluminum 2618 /billet compressor wheel
