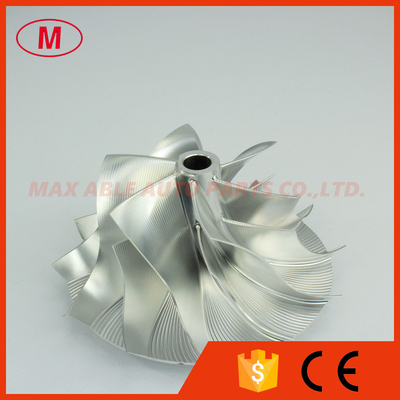

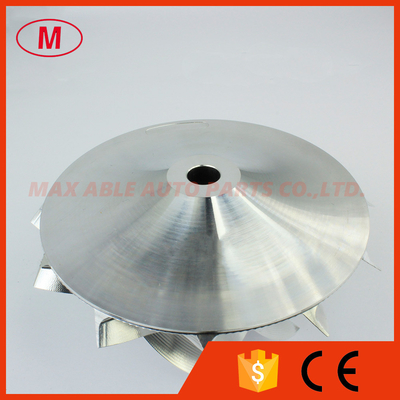

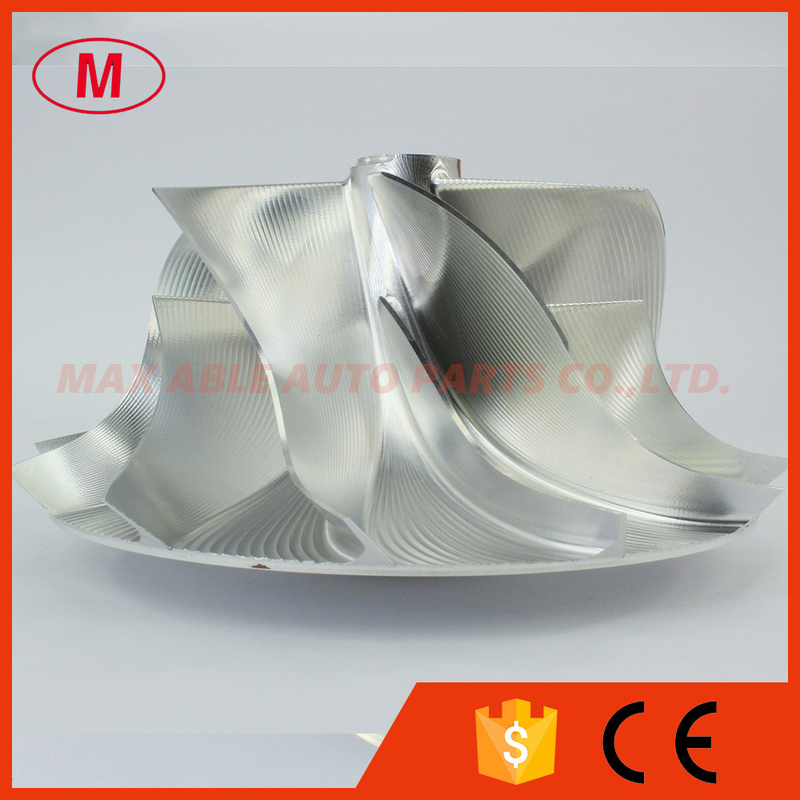

S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel

S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel

    • S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel
    • S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel
    • S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel
  • S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: S400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:S400 forward

    2. S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo Billet/milling/aluminum 2618 compressor wheel for S374/S375 : 171702(S400SX4-75), 176806(S400SX4-75), 179174(S400SX-75) racing.
    3.Size:

    Nose diameter:16.00mm

    Inducer:74.53mm

    Exducer:101.44mm

    Tapered tip exducer:113.73mm

    Tip height:7.14mm

    Superback:8.41mm

    Bore size:10.00mm

    Trailing angle:60

    Overall height:58.00mm

    Cutback:5.0

    SP Height angle:-2.80

    Blades height:46.36mm

    Splitter height:29.75mm

    6+6 blades

    Forward rotation

    Tapered tip angle:45 degree

    Fits OE Compressor Housing

    4.High quality and competitive price.

    5.Any questions please send email to me

    We can produce as your requirement.

    The minimun order is 5pcs

    All the compressor wheel have been balanced.

    S400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheelS400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheelS400 171691 74.53/101.44mm 6+6 blades high performance point milling Turbo milling/aluminum 2618/billet compressor wheel
