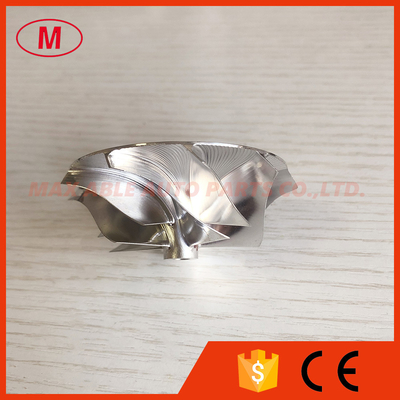

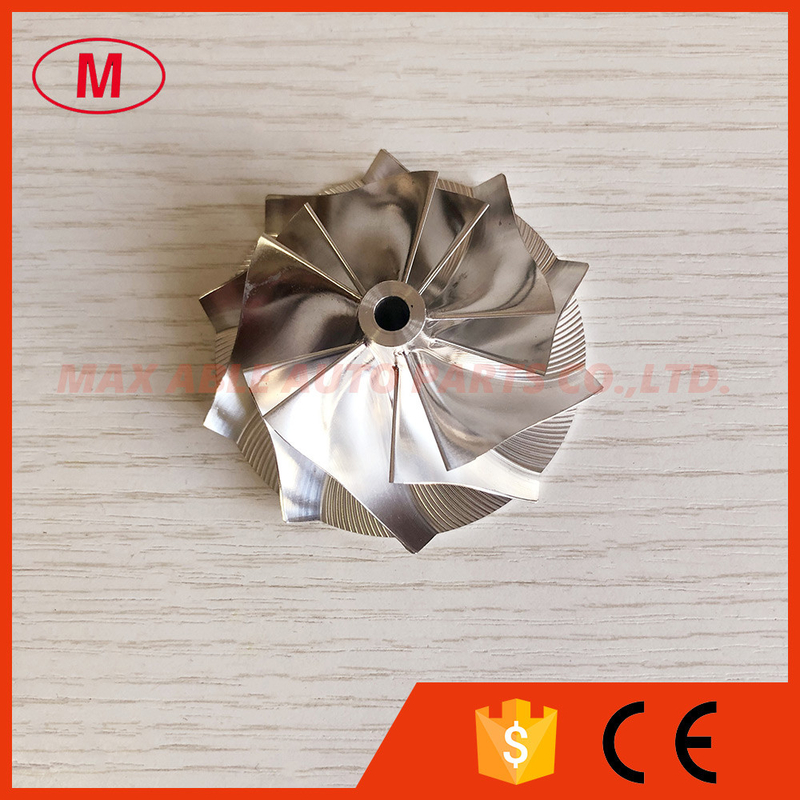

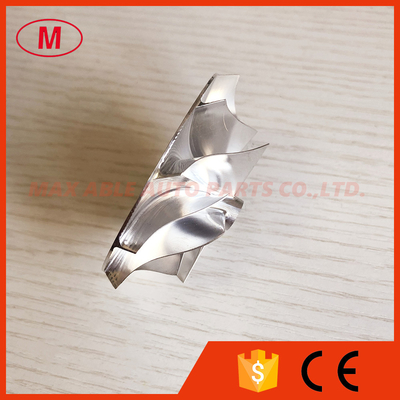

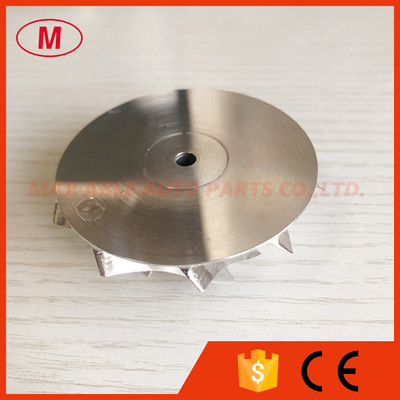

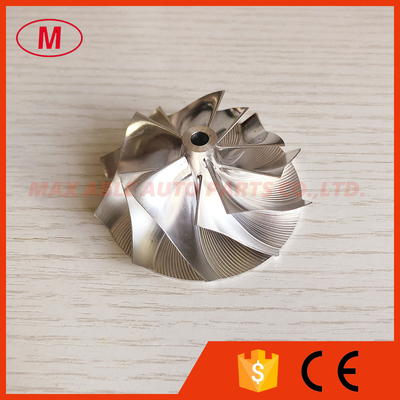

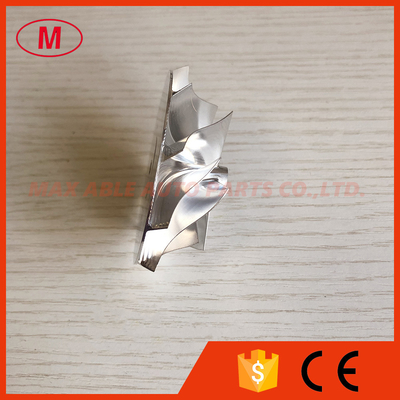

HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel

HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel

    • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
    • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
    • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
    • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
    • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
    • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
  • HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: HT10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel

    2.Size:

    Inducer :46.50mm

    Exducer:61.40mm

    Nose diameter:9.63mm

    Tapered tip exducer:66.73mm

    Tip height:5.62mm

    superback:0.15mm

    Overall height:24.40mm

    bore size:5.00mm

    b​ore type:through

    Trailing angle:55 degree

    Cutback:0.0mm

    S​plitter height:17.50mm

    S​p height angle:-8.60

    Blades height:20.80mm

    5+5 blades forward rotation ​

    Tapered tip angle:30 degree

    It is custom size ,please check carefully before buying.

    3.High quality and competitive price.



    We have more size and we can produce as your requirement .

    All the compressor wheels have been balanced.

    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719


    HT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheelHT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheelHT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheelHT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheelHT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheelHT10 46.50/61.40mm 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel
