| Brand Name: | NO |
| Model Number: | GTW3884R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GTW3884R Forward

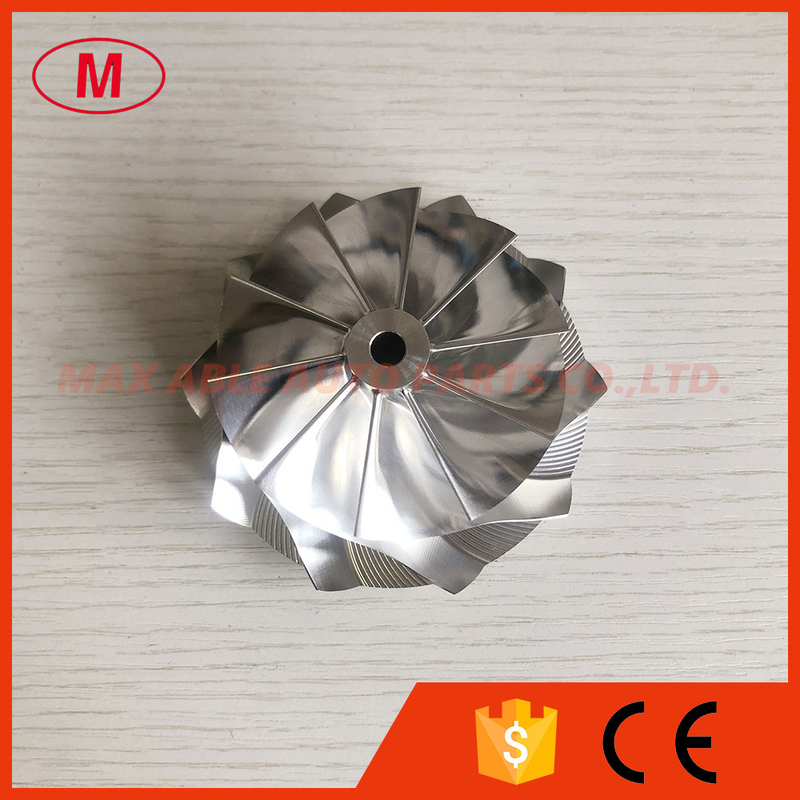

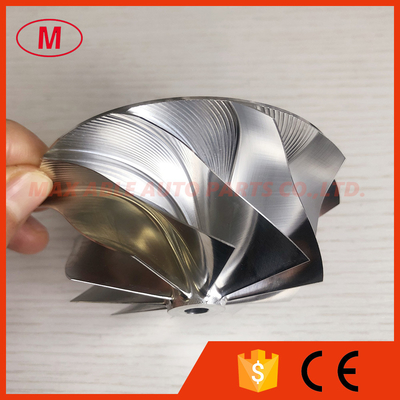

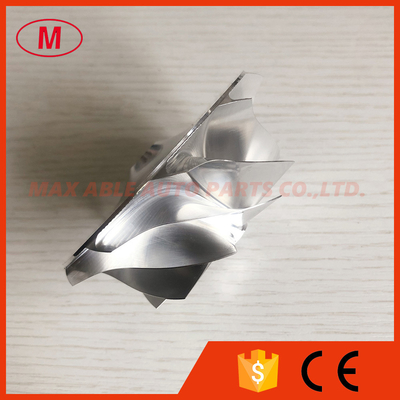

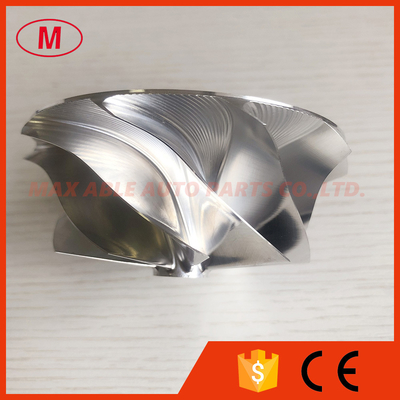

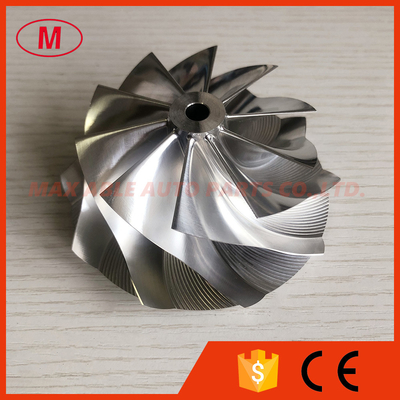

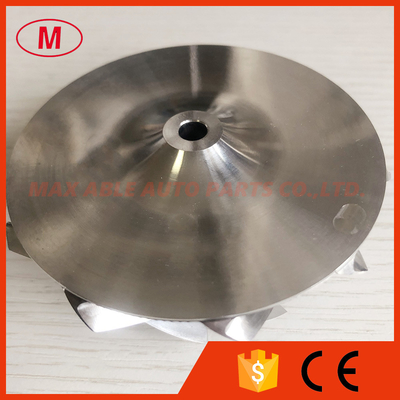

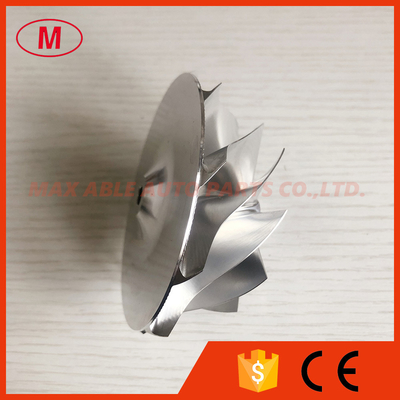

2.GTW3884R forward 2266-3 67.27/84.40mm 10+0 blades high peroformance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:15.00mm
inducer:67.27mm
Exduder:88.40mm
Tapered tip exducer:90.38mm
Tip height:6.18mm
Superback:4.94mm
Overall height:41.25mm
bore size :6.35mm
Trailing Angle: 35
Bore type:Through
Cutback:6.70
SP height angle:0.00
Splitter height:0.00
Blade height:34.20mm
10+0 blades
forward rotation
Tapered tip angle: 30 degree
It is Custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
