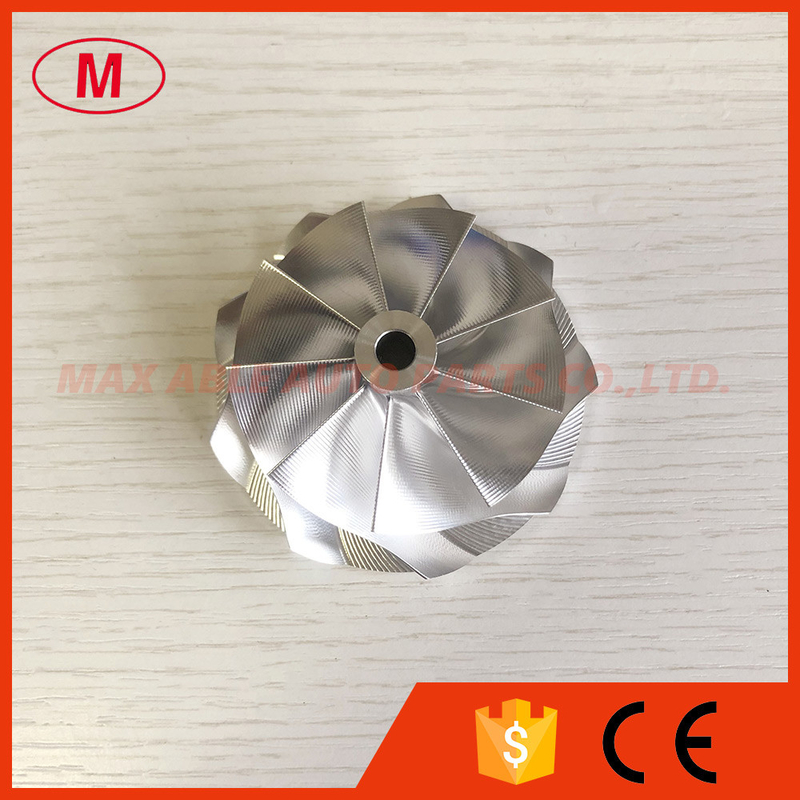

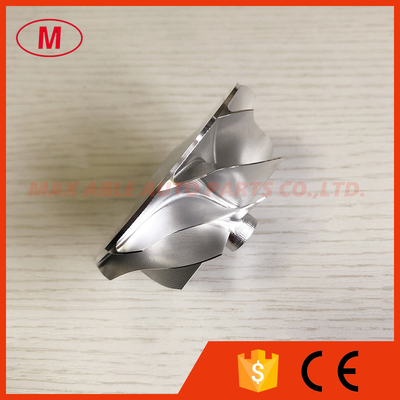

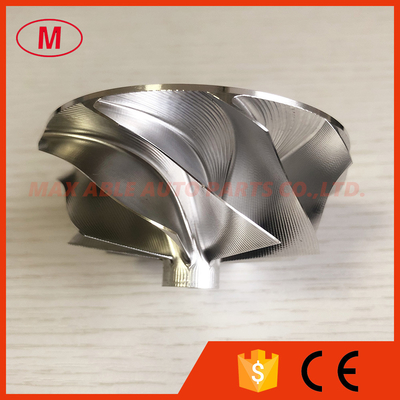

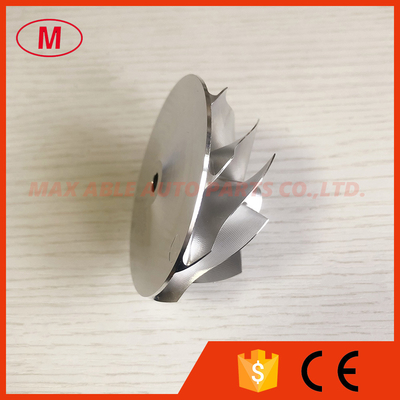

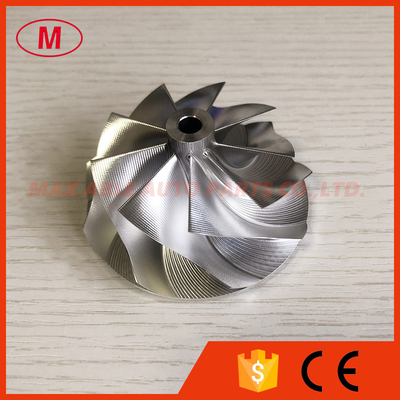

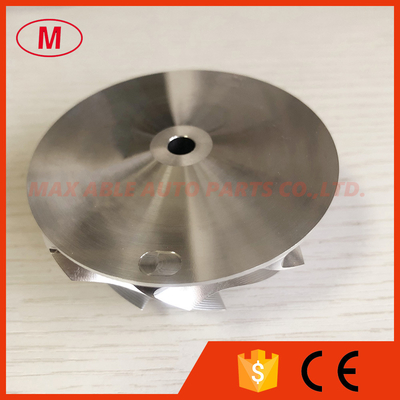

G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S

G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S

    • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
    • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
    • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
    • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
    • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
    • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
  • G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: G25-660

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT/western union/paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description



    1.Model:GT25-660 FORWARD

    2. G25-660 54.28/67.40mm 9+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel for 858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S
    3.Size:

    Nose diameter:12.40mm

    Inducer:54.28mm

    Exducer:67.40mm

    Tapered tip exducer:69.80mm

    Tip height:7.17mm

    Trailing angle:35

    Superback:2.23mm

    Bore:6.00

    Cutback:6.6

    Overall height:33.85mm

    SP Height angle:0.00

    Blades height:26.05mm

    Splitter height:0.00mm

    9+0 blades

    Tapered tip angle:11.4 degree

    Forward rotation

    It is for OE compressor housing



    4.Good quality and competitive price

    5.if you want to know more details ,please send email to me !

    6.Application:

    858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S

    All the compressor wheel have been balanced.

    G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003SG25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003SG25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003SG25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003SG25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003SG25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S
