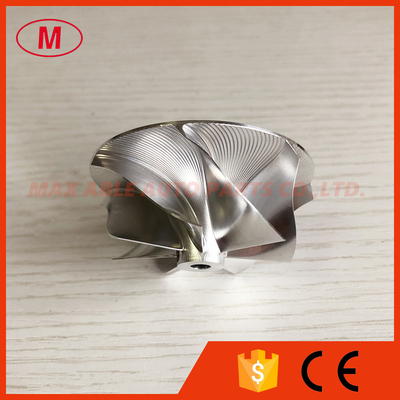

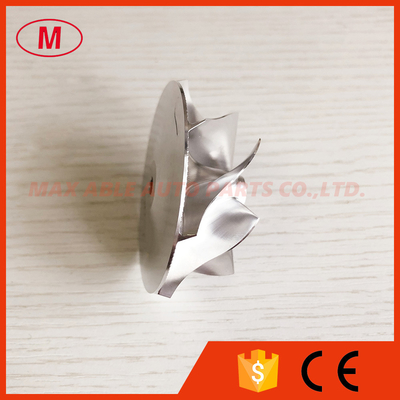

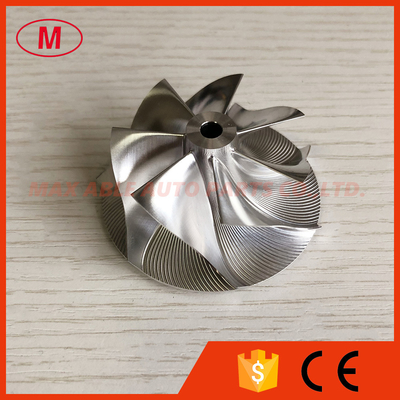

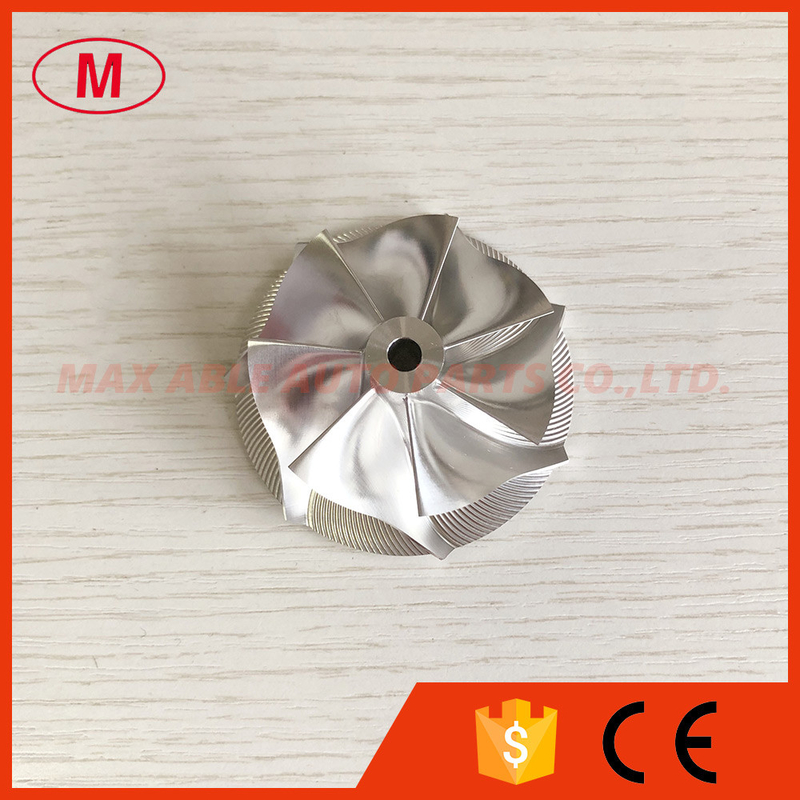

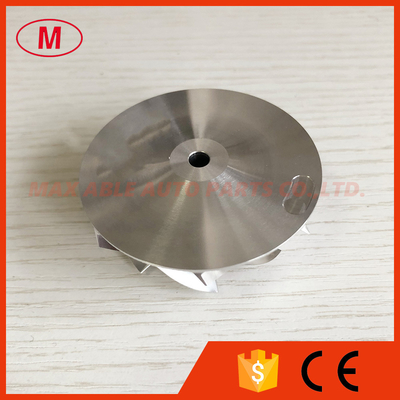

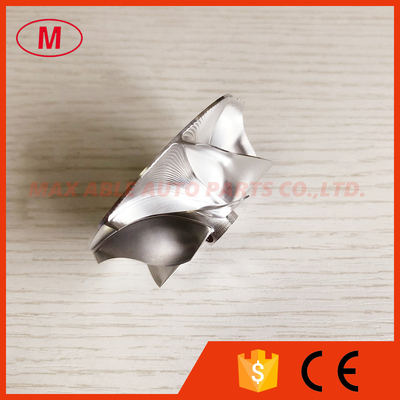

TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220

TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220

    • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220
    • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220
    • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220
    • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220
    • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220
    • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220
  • TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 49189-07220

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 20T forward

    2. TD04HL 20T 49189-X 47.04/58.00mm 7+0 blades Turbocharger Billet/Milling/aluminum 2618 compressor wheel for 49189-07220
    3.Size:

    Nose Diameter:11.63mm

    inducer:47.04mm

    Exducer:58.00mm

    Tapered tip exducer:60.37mm

    Tip height:4.65mm

    Superback:1.90mm

    Overall height:26.13mm

    Bore size:5.00mm

    bore type:through

    Trailing Angle:60 degree

    Cutback:0.0

    SP Height angle:0.00

    Blades height:21.53mm

    Splitter height:0.00mm

    Tapered tip Angle:18 degree

    7+0 blades

    Fit for OE compressor housing

    Forward rotation

    4.High quality and competitive price.

    5.Any questions please send email to me.

    We have more size ,if you want ,please don't hesitate to contact me.



    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719
