Home ProductsBillet compressor wheel

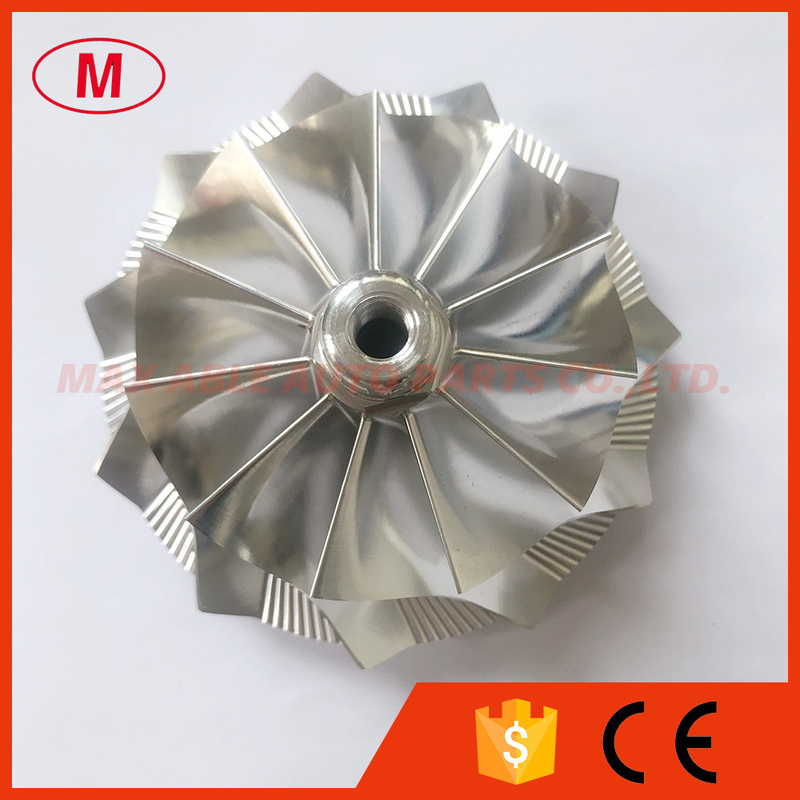

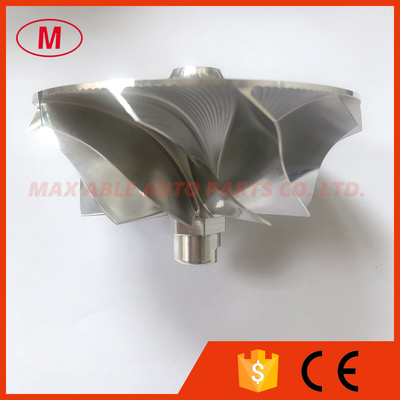

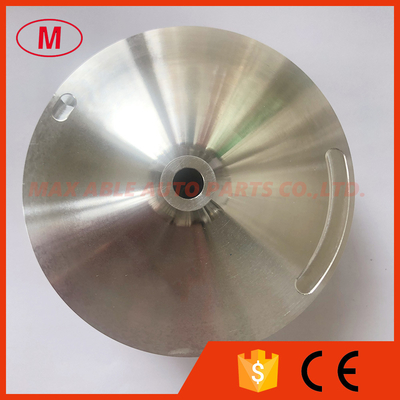

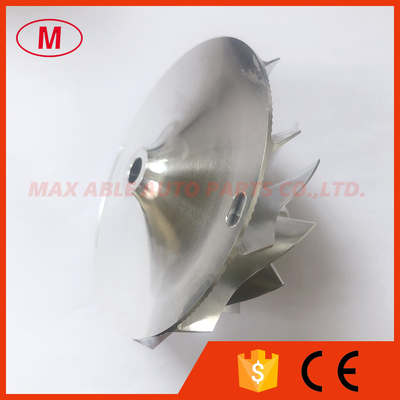

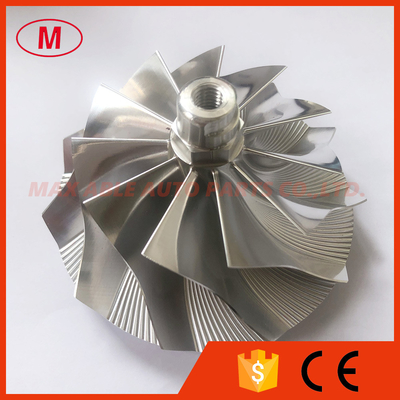

GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel

GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel

    • GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel
    • GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel
    • GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel
    • GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel
    • GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel
  • GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: GTX4294

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 70.24/94.40mm Type: Turbochargers

    1. MODEL:GTX4294 forward

    2.GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbocharger milling/aluminum 2618/billet compressor wheel

    3.Size:

    Nose diameter:19.10mm

    inducer:70.24mm

    Exduder:94.40mm

    Tapered tip exducer:98.45mm

    Tip height:8.62mm

    Superback:9.51mm

    Overall height:58.77mm

    bore size :8.25mm

    Bore type:Threaded-M8x1.25LHT

    Trailing Angle:45 degree

    Cutback:0.0mm

    Splitter height:0.00mm

    SP height angle:0.00

    Blade height:32.91mm

    11+0 blades

    Tapered tip Angle:17 degree

    Forward rotation

    It is for OE compressor housing

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.

    All the billet compressor wheels have been balanced.

    The more models we also have.

    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719
    GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel

    GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheelGTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheelGTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheelGTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheelGTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel
