| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | HX60 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:HX60 forward

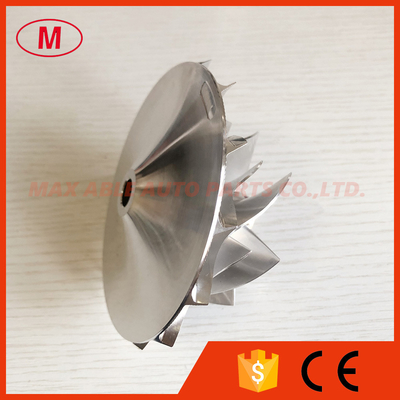

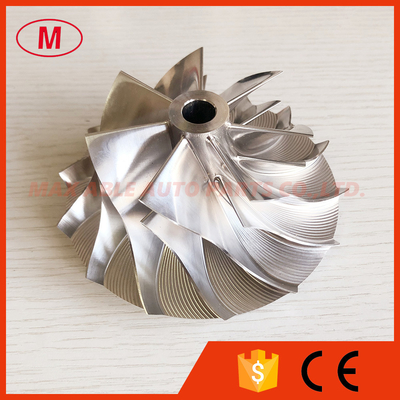

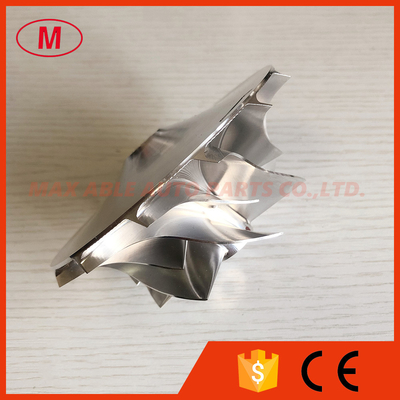

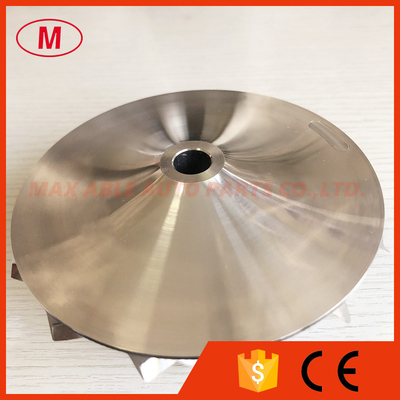

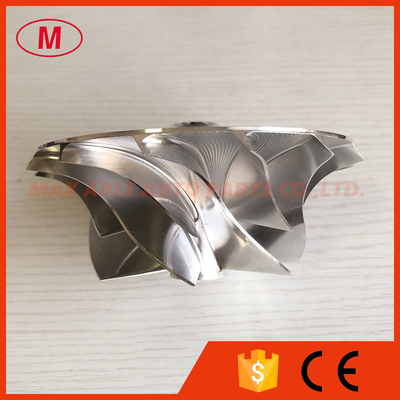

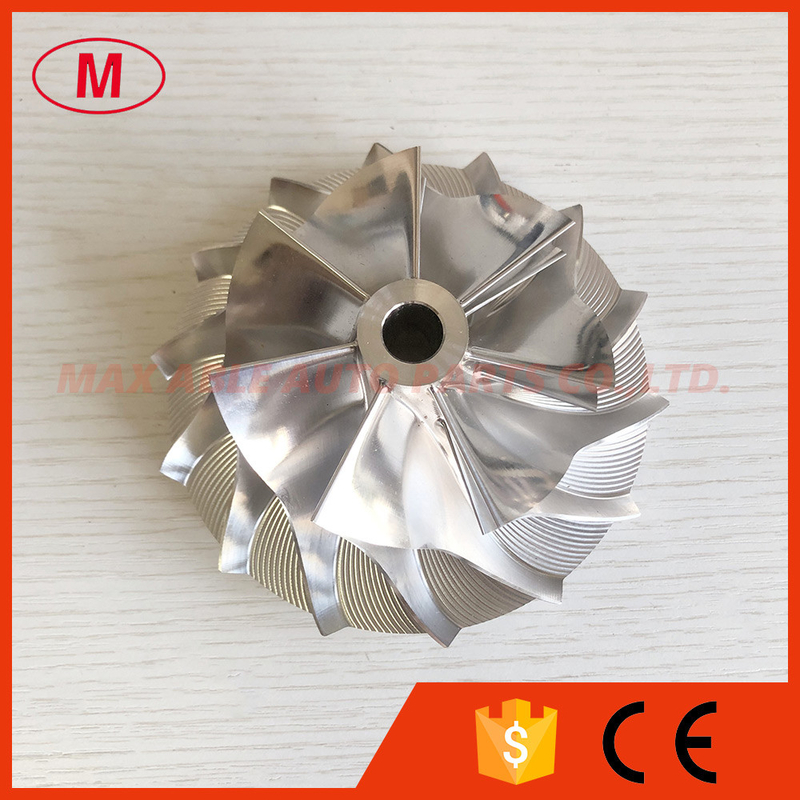

2. HX60 3531538 76.00/109.00mm 7+7 blades high performance turbo milling/Aluminum 2618/billet compressor wheel for 4045532/4027403/4027260/4027648/4027256/4027437/4027261/4030876/4027400/4027257/4027023/3575195
3.Size:
Nose Diameter:20.21mm
inducer:76.00mm
Exducer:109.00mm
Tapered tip exducer:115.48mm
Tip height:6.61mm
Superback:9.68mm
Overall height:54.00mm
Bore size:11.12mm
Trailing angle:60
Cutback:0.0
Splitter height:28.10mm
SP height angle:-10.00
Blades height:41.39mm
7+7 BLADES
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.We have many size.
All the compressor wheel have been balanced.
