| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H forward

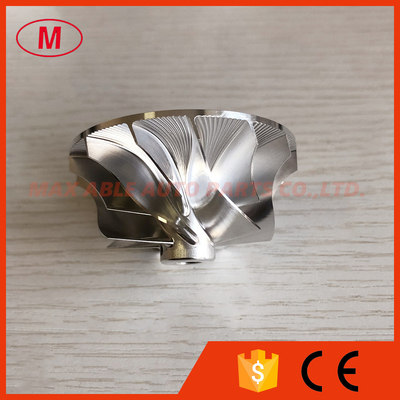

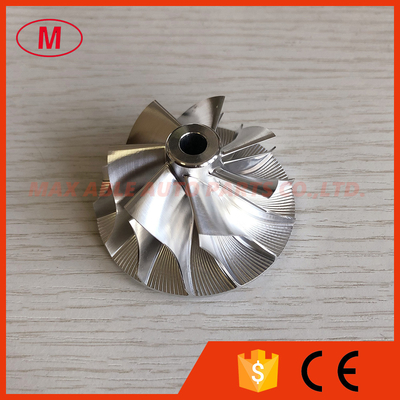

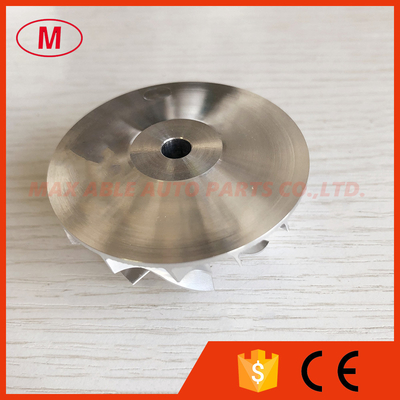

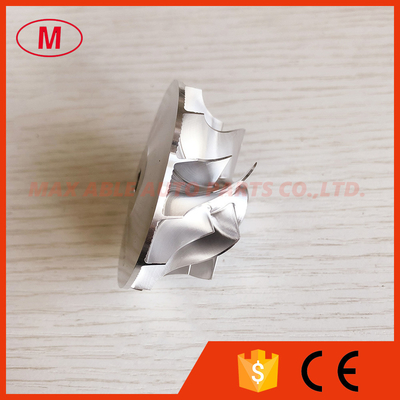

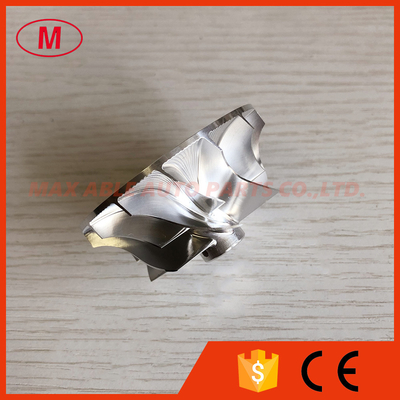

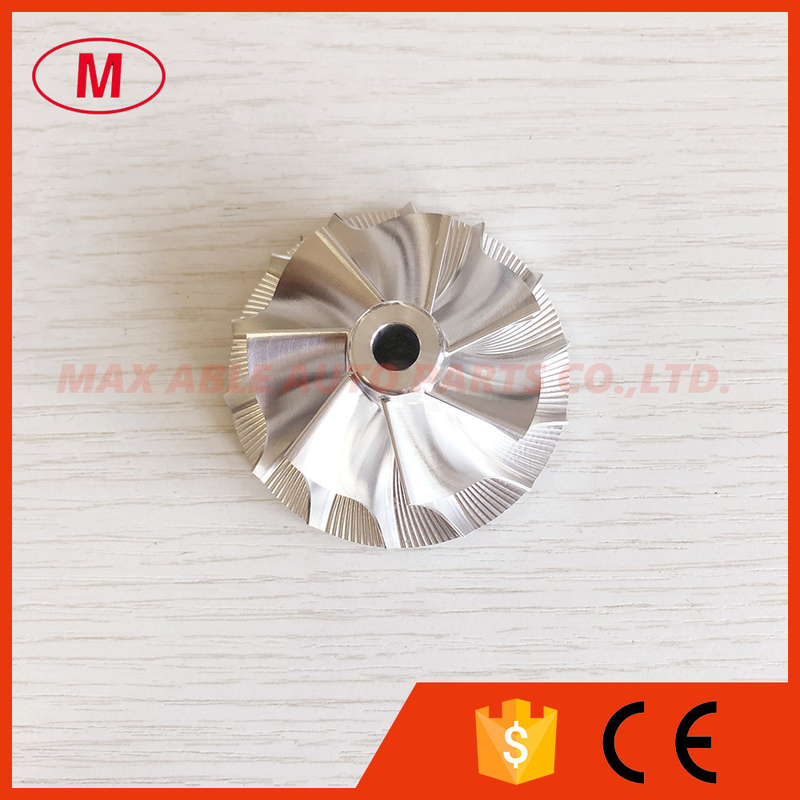

2. TD05H 43.18/56.52mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Inducer:43.18mm
Exducer:56.52mm
Nose diameter:13.06mm
Tip height:6.32mm
Superback:2.25mm
Overall height:30.10mm
Bore Size:6.53mm
Trailing angle:75
Cutback:4.1
Splitter height:16.25mm
SP height angle:3.30
Blades height:23.75mm
7+7 blades
forward rotation
Tapered tip angle:0 degree
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheel have been balanced.
