1. MODEL:RHF55 forward

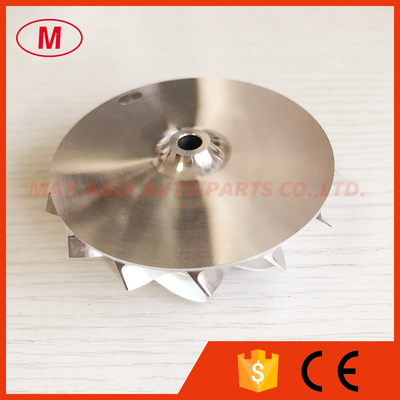

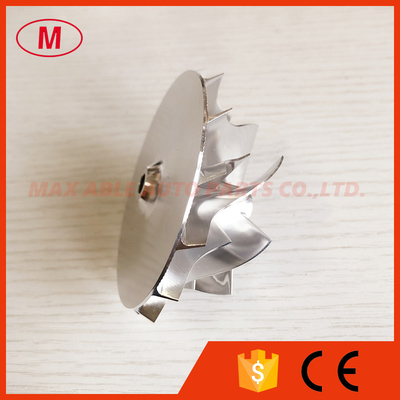

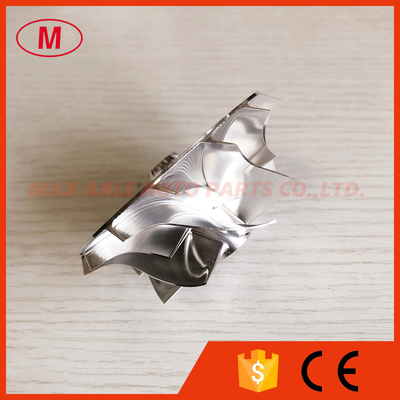

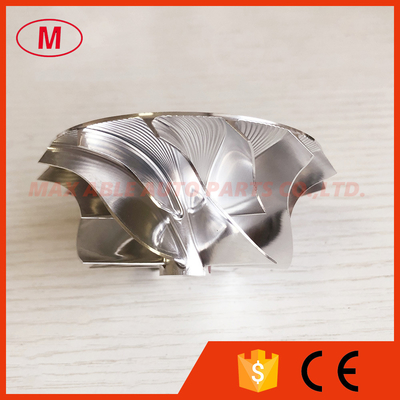

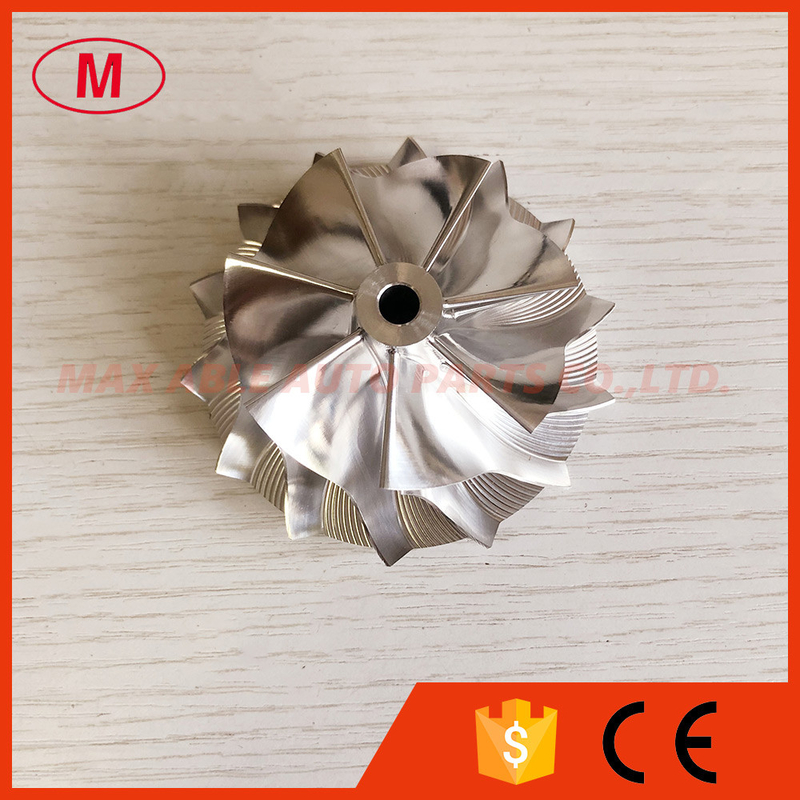

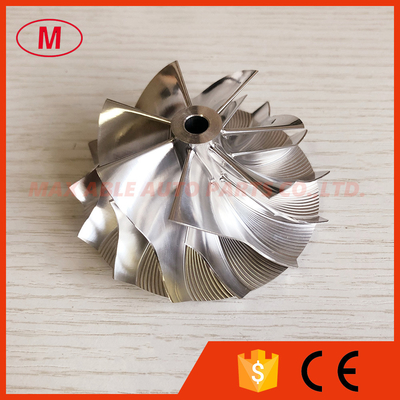

2.RHF55 54.64/70.98mm 7+7 blades high performance Turbo aluminum 2618/milling/ Billet compressor wheel
3.Size:
Nose diameter:12.50mm
Inducer:54.64mm
exducer:70.98mm
Tapered tip exducer:76.94mm
Tip height :6.16mm
superback:3.79mm
Overall height:34.00mm
Bore size:6.10mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
Blades height:28.00mm
Splitter height:17.40mm
SP height angle:-3.50
7+7 blades
Forward rotation
Tapere tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
