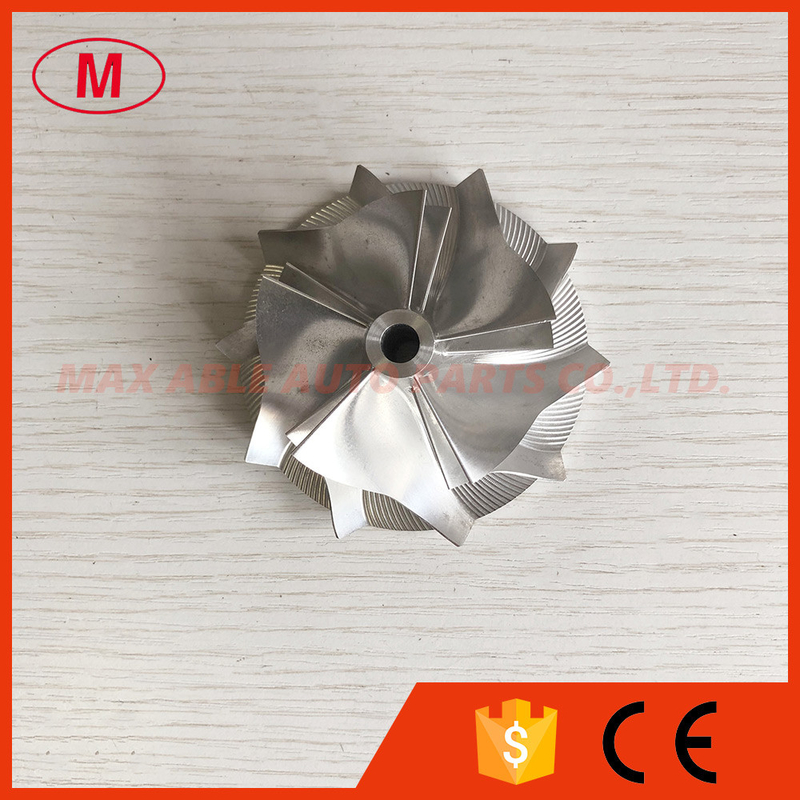

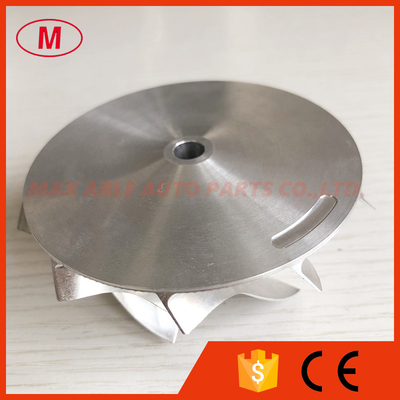

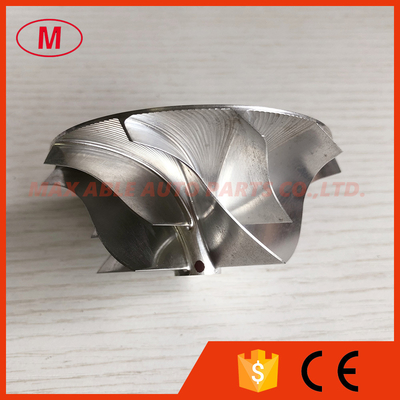

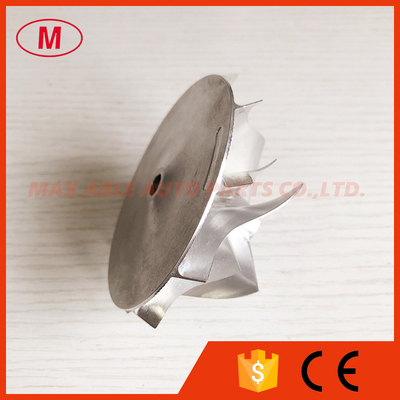

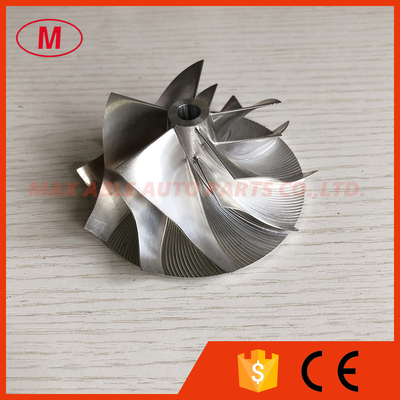

RHX6 58.93/77.98mm 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	RHX6

Contact Now

Detailed Product Description

Type:	Turbochargers

1. MODEL:RHX6 forward

2.RHX6 58.93/77.98mm 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:13.00mm

Inducer:58.93mm

exducer:77.98mm

Tapered tip exducer:85.80mm

Tip height:7.77mm

Superback:2.10mm

bore size :7.41mm

Overall height:37.00mm

Cutback:0.0

Trailing Angle:45

Blades height:33.48mm

5+5 blades forward

It is for OE compressor housing

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
