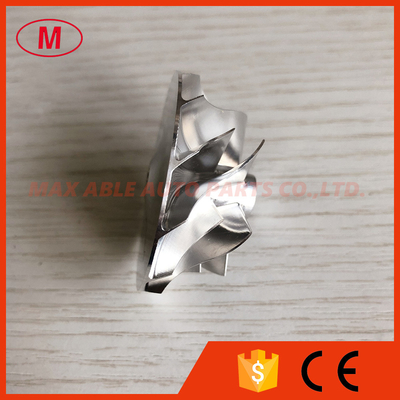

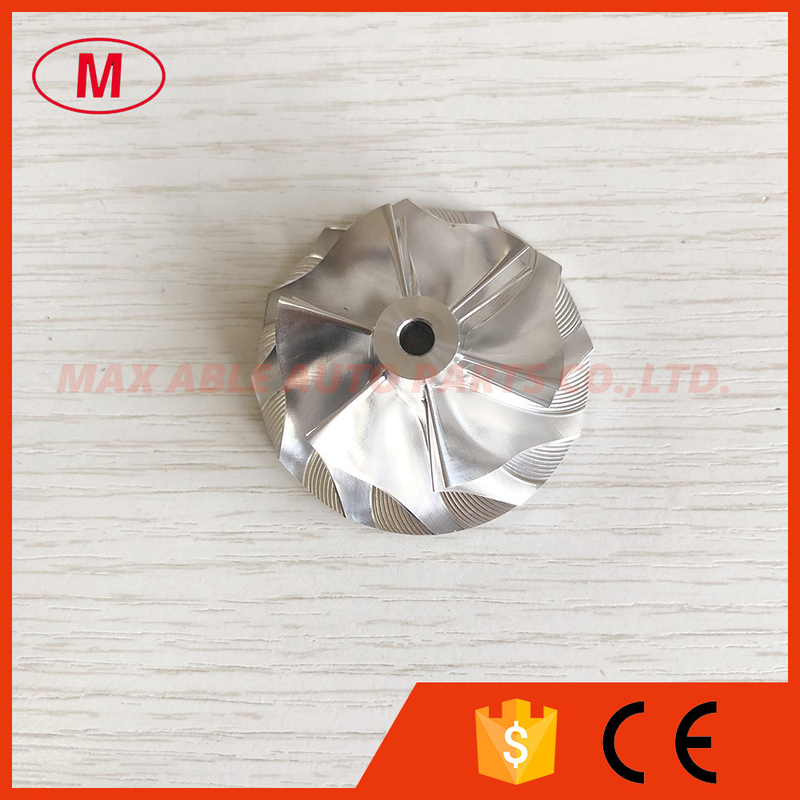

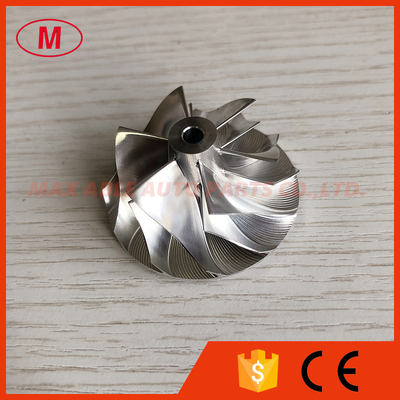

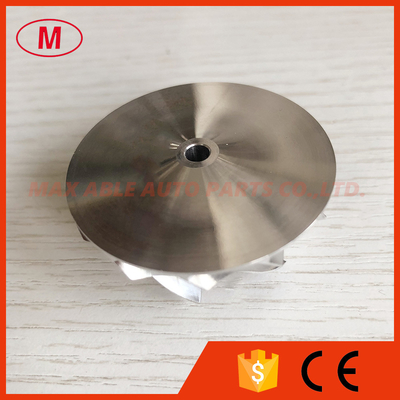

TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401

TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401

    • TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401
    • TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401
    • TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401
    • TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401
  • TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD025

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:TD025 Forward

    2.TD025 9T-SB 33.83/44.01mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel for 49173-02401

    3.Size:

    Nose diameter:9.66mm

    Inducer:33.83mm

    Exducer:44.01mm
    Tip height:4.51mm
    Superback:1.68mm
    Overall height:21.60mm
    Bore size:4.00mm
    Trailing angle:45
    Bore type:Through
    Cutback:0.0
    SP Height angle:-3.50
    Blade height:17.14mm
    Splitter height:11.60mm
    6+6 blades
    Forward rotation
    Tapered tip angle:0 degree
    Fits OE Compressor Housing
    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.

    TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401TD025 9T-SB 33.83/44.01mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 49173-02401
