| Brand Name: | NO |
| Model Number: | KP31 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 22.10/33.00 | Type: | Turbochargers |
|---|

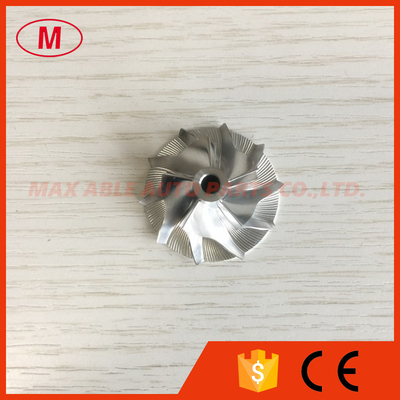

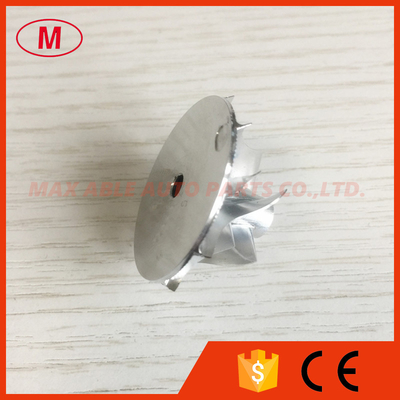

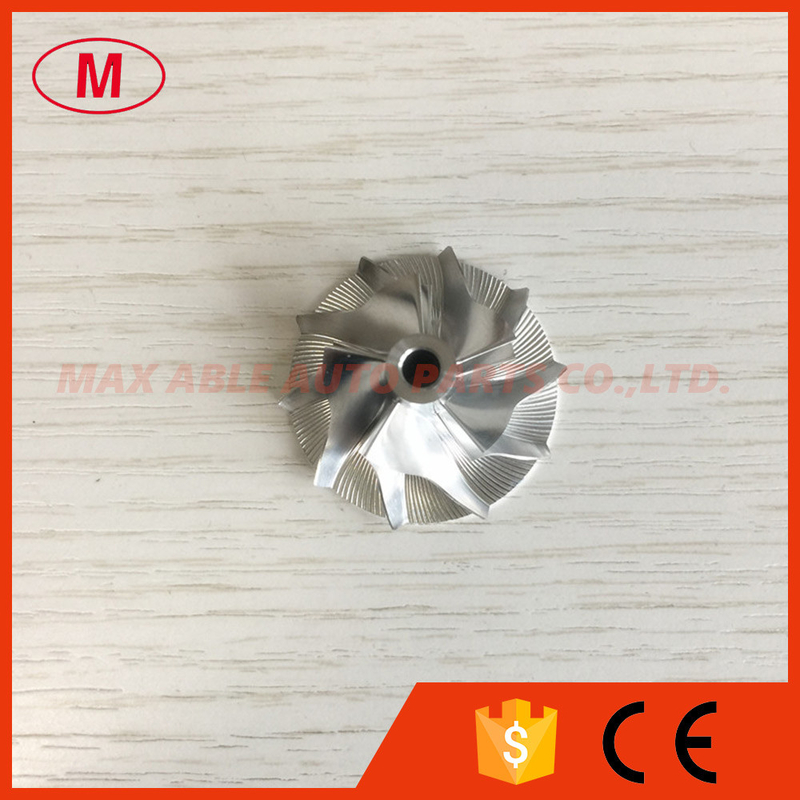

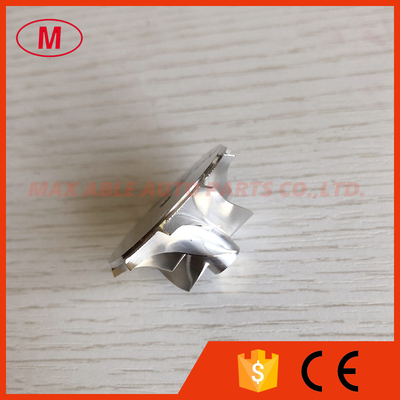

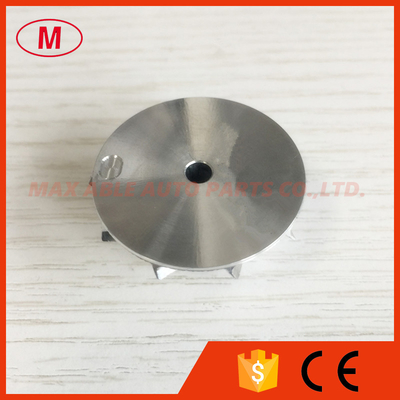

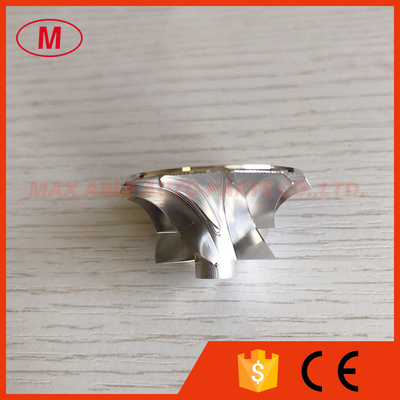

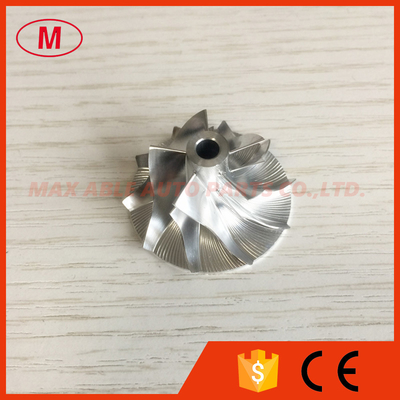

1.Model:KP31 forward
3.Size:
Nose diamter:7.56mm
inducer:22.10mm
Exduder:33.00mm
Tapered tip exducer:35.66mm
Tip height:2.91mm
Superback:0.00mm
Overall height:18.00mm
bore size :4.10mm
Trailing angle:65 degree
Cutback:0.0
Fit OE compressor housing
SP height angle:1.00
Blades height:15.00mm
Splitter height:9.55mm
5+5 blades
Forward rotation
Tapered tip angle:30 degree
Application:
5431-970-0000
5431-970-00024.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
